SKU: 6919-ZZ/C3-NACHI

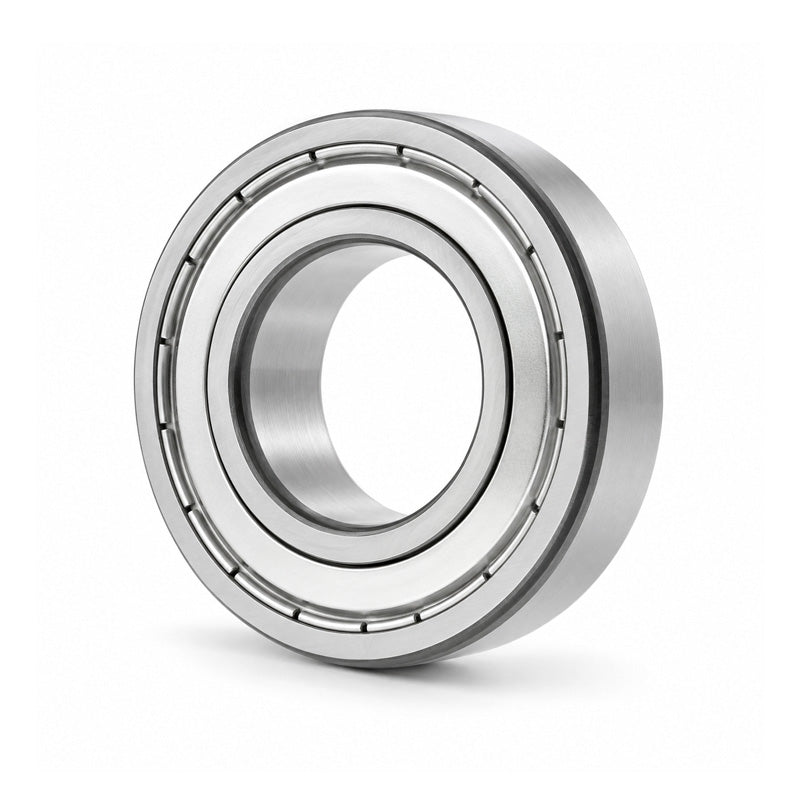

NACHI 6919ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 95x130x18mm
NACHI 6919ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 95x130x18mm
Equivalent to: 6919ZZEC3 69192ZC3 6919.2ZC3 6919KDDC3 6919DDC3 69192ZRC3 6919FFC3 61919ZZEC3 61919ZZC3 619192ZC3 61919.2ZC3 61919KDDC3 61919DDC3 619192ZRC3 61919FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 130mm
- Width:
- 18mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 95mm |
|---|---|
| Outside Diameter D | 130mm |
| Width B | 18mm |
| Min radius r | 1.1mm |
| Dynamic load | 33500 kN |
| Static load | 33500 kN |
| Max speed | 4800 rpm |
| da min | 101mm |
| Da max | 124mm |
| ra max | 1mm |
| Weight | 0.567 kg |
