SKU: 6910-ZZE/C3-NACHI

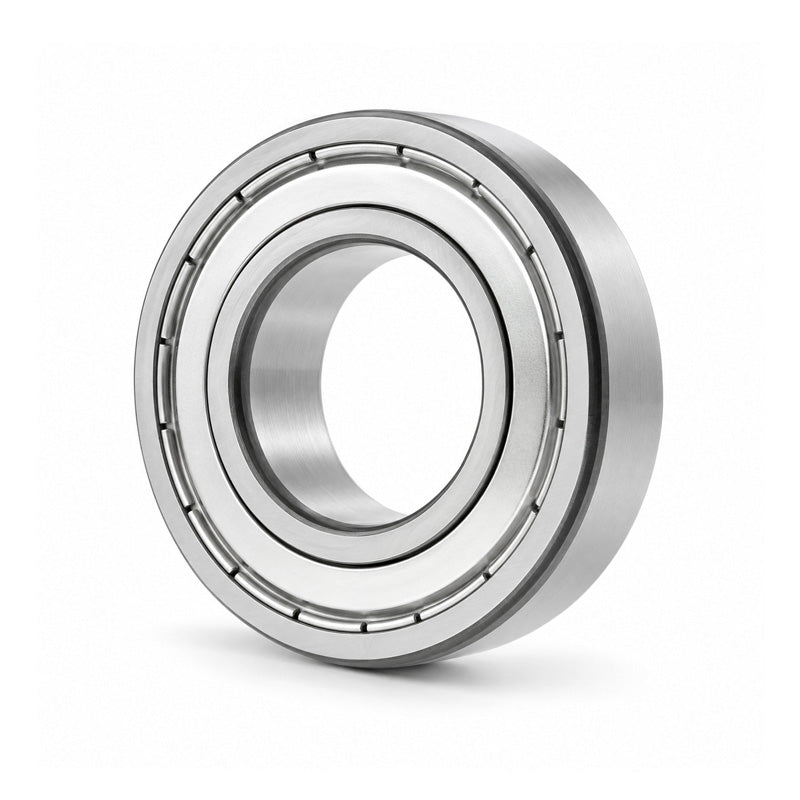

NACHI 6910ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 50x72x12mm
NACHI 6910ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 50x72x12mm
Equivalent to: 6910ZZC3 69102ZC3 6910.2ZC3 6910KDDC3 6910DDC3 69102ZRC3 6910FFC3 61910ZZEC3 61910ZZC3 619102ZC3 61910.2ZC3 61910KDDC3 61910DDC3 619102ZRC3 61910FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 72mm
- Width:
- 12mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 50mm |
|---|---|
| Outside Diameter D | 72mm |
| Width B | 12mm |
| Min radius r | 0.6mm |
| Dynamic load | 14500 kN |
| Static load | 11700 kN |
| Max speed | 9500 rpm |
| da min | 54mm |
| Da max | 68mm |
| ra max | 0.6mm |
| Weight | 0.125 kg |
