SKU: 6908ZZNR/2AS-NTN

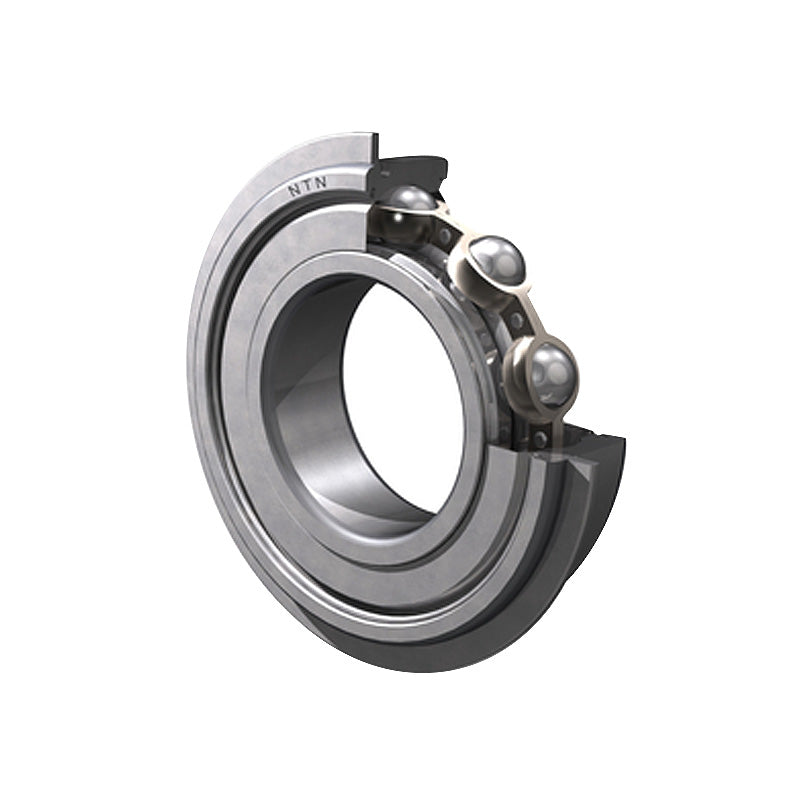

NTN 6908ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 40x62x12mm
Equivalent to: 6908ZZNRCM 61908ZZNRCM 6908ZZNR 61908ZZNR 6908ZZNR 69082ZNR 6908ZZNR 69082ZRNR 6908ZZENR 6908FFNR 6908DDNR 6908DDCNR 6908KDDCNR EL402ZNR EL40ZZNR 9108KDDG 4773L08 108KSFFG
In stock
Price Break
Couldn't load pickup availability
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 12mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 40mm |
| D | 62mm |
| B | 12mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 13.5 kN |
| C<sub>or</sub> | 8.9 kN |
| C<sub>u</sub> | 0.645 kN |
| f<sub>0</sub> | 15.8 rpm |
| Grease | 11000 rpm |
| --- | Fitting Dimensions |
| Oil | 13000 rpm |
| D<sub>1</sub> Max. | 60.7mm |
| a Max. | 1.7mm |
| b Min. | 0.95mm |
| r<sub>o</sub> Max. | 0.25mm |
