SKU: 6908-2NKE/C3-NACHI

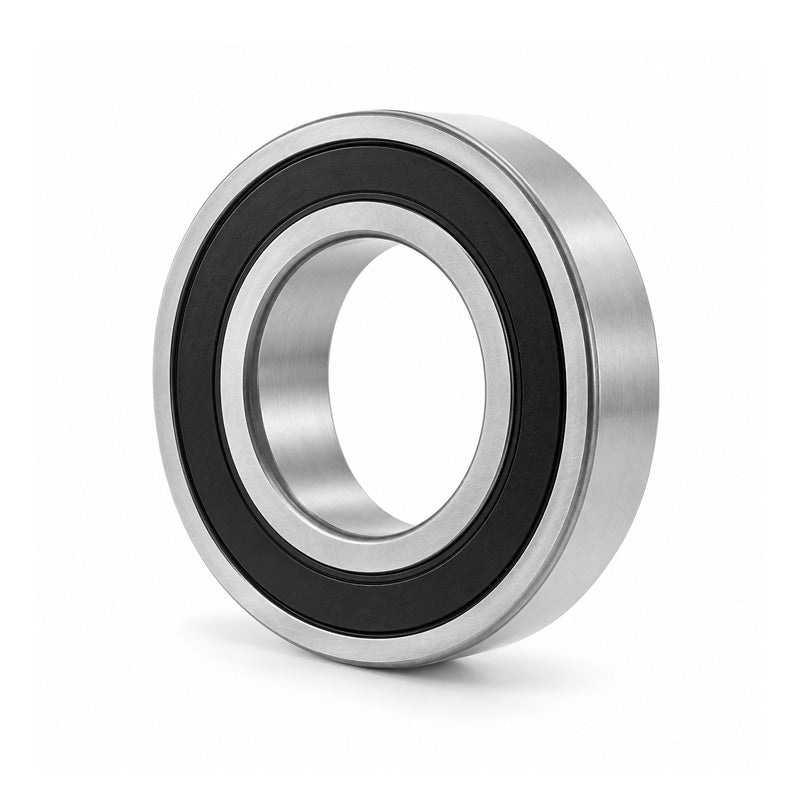

NACHI 69082NKEC3 Thin Section Non Contact Low Friction Sealed Deep Groove Ball Bearing 40x62x12mm
NACHI 69082NKEC3 Thin Section Non Contact Low Friction Sealed Deep Groove Ball Bearing 40x62x12mm
Equivalent to: 6908NKEC3 619082NKEC3 61908NKEC3
Out of stock
Description
Description
|
NACHI Non-contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two non-contact rubber seals to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation, good grease sealing, good protection against dust, low friction. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 12mm
- Seals / Shields:
- Low Friction
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 40mm |
|---|---|
| Outside Diameter D | 62mm |
| Width B | 12mm |
| Min radius r | 0.6mm |
| Dynamic load | 13700 kN |
| Static load | 9950 kN |
| Max speed | 11000 rpm |
| da min | 44mm |
| Da max | 58mm |
| ra max | 0.6mm |
| Weight | 0.108 kg |
