SKU: 6906-ZZE-NACHI

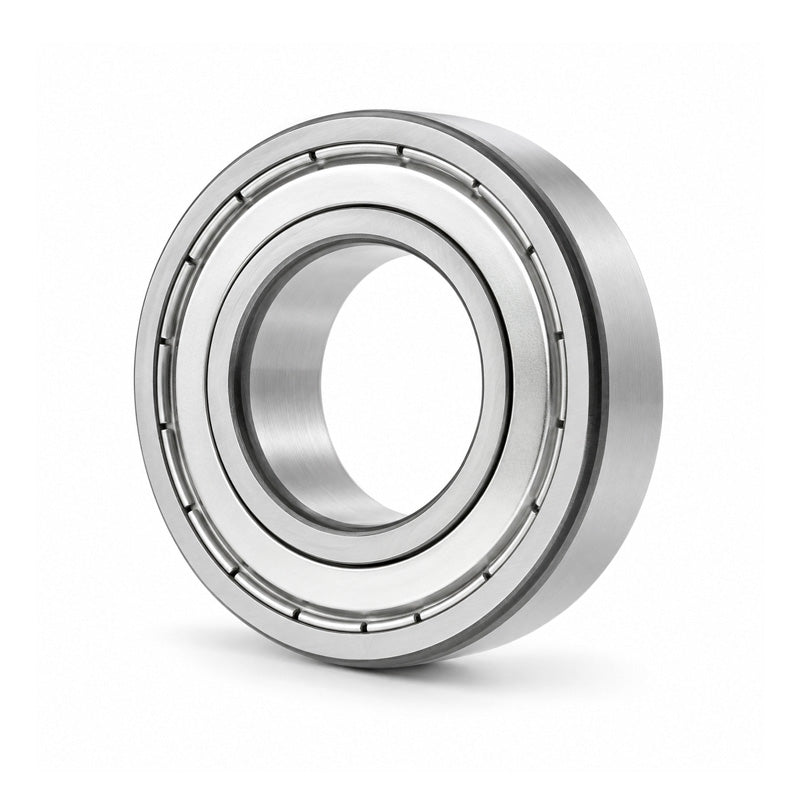

NACHI 6906ZZE Thin Section Metal Shielded Deep Groove Ball Bearing 30x47x9mm
NACHI 6906ZZE Thin Section Metal Shielded Deep Groove Ball Bearing 30x47x9mm
Equivalent to: 6906ZZ 69062Z 6906.2Z 6906KDD 6906DD 69062ZR 6906FF 61906ZZE 61906ZZ 619062Z 61906.2Z 61906KDD 61906DD 619062ZR 61906FF
Out of stock
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 9mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 30mm |
|---|---|
| Outside Diameter D | 47mm |
| Width B | 9mm |
| Min radius r | 0.3mm |
| Dynamic load | 7250 kN |
| Static load | 5000 kN |
| Max speed | 14000 rpm |
| da min | 32mm |
| Da max | 45mm |
| ra max | 0.3mm |
| Weight | 0.045 kg |
