SKU: 6906-2NKE/C3-NACHI

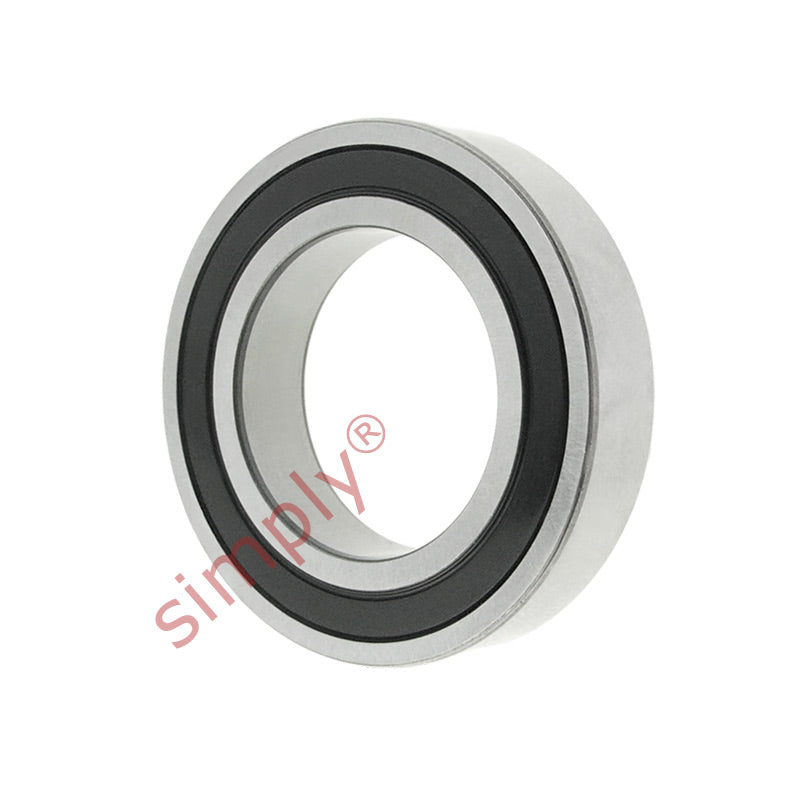

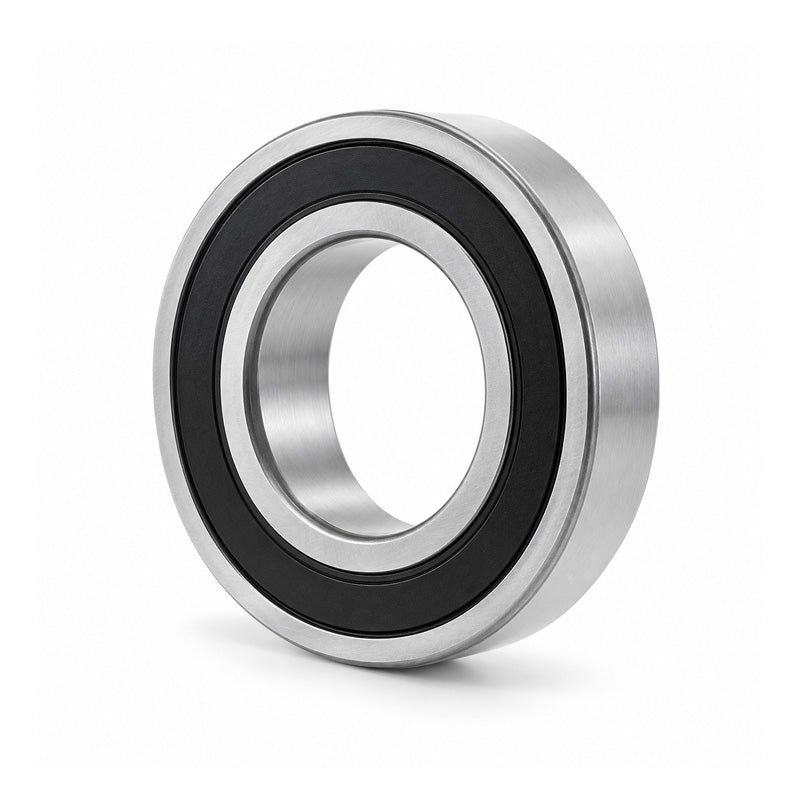

NACHI 69062NKEC3 Thin Section Non Contact Low Friction Sealed Deep Groove Ball Bearing 30x47x9mm
NACHI 69062NKEC3 Thin Section Non Contact Low Friction Sealed Deep Groove Ball Bearing 30x47x9mm
Equivalent to: 6906NKEC3 619062NKEC3 61906NKEC3
Out of stock
Description
Description
|
NACHI Non-contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two non-contact rubber seals to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation, good grease sealing, good protection against dust, low friction. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 9mm
- Seals / Shields:
- Low Friction
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 30mm |
|---|---|
| Outside Diameter D | 47mm |
| Width B | 9mm |
| Min radius r | 0.3mm |
| Dynamic load | 7250 kN |
| Static load | 5000 kN |
| Max speed | 14000 rpm |
| da min | 32mm |
| Da max | 45mm |
| ra max | 0.3mm |
| Weight | 0.045 kg |
