SKU: 6905-ZZE/C3-NACHI

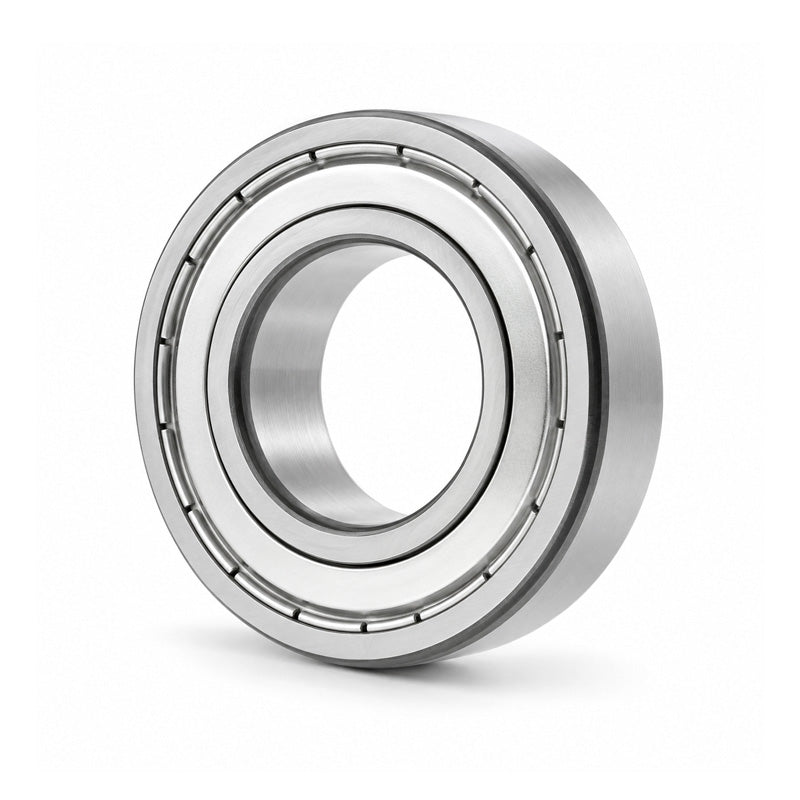

NACHI 6905ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 25x42x9mm
NACHI 6905ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 25x42x9mm
Equivalent to: 6905ZZC3 69052ZC3 6905.2ZC3 6905KDDC3 6905DDC3 69052ZRC3 6905FFC3 61905ZZEC3 61905ZZC3 619052ZC3 61905.2ZC3 61905KDDC3 61905DDC3 619052ZRC3 61905FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 9mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 25mm |
|---|---|
| Outside Diameter D | 42mm |
| Width B | 9mm |
| Min radius r | 0.3mm |
| Dynamic load | 7000 kN |
| Static load | 4500 kN |
| Max speed | 16000 rpm |
| da min | 27mm |
| Da max | 40mm |
| ra max | 0.3mm |
| Weight | 0.042 kg |
