SKU: 6904-2RS1/C3-SKF

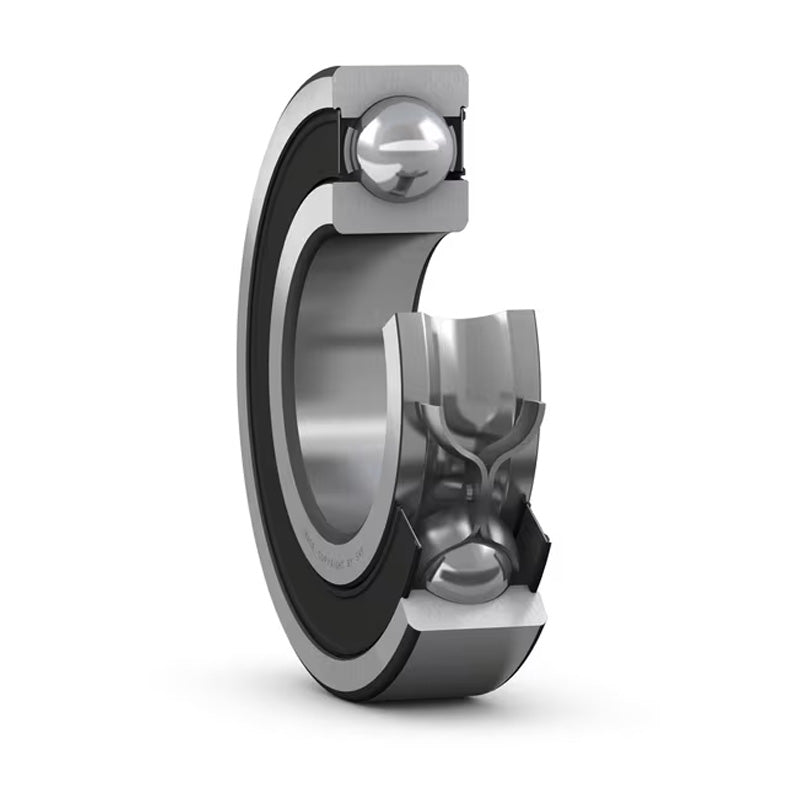

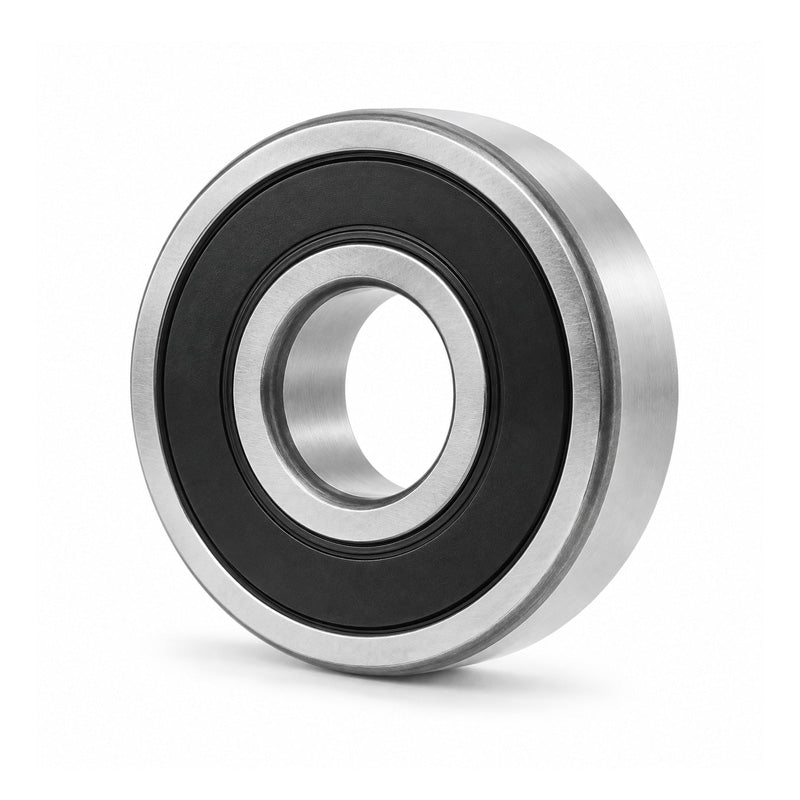

SKF 69042RS1C3 Rubber Sealed Thin Section Deep Groove Ball Bearing 20x37x9mm
Equivalent to: 61904NSEC3 61904DUC3 61904RSC3 61904RSHC3 61904PC3 61904RSRC3 61904LUC3 6904NSEC3 6904DUC3 6904RSC3 6904RSHC3 6904PC3 6904RSRC3 6904LUC3 619042NSEC3 61904DDUC3 619042RSC3 619042RSHC3 61904PPC3 619042RSRC3 61904LLU 69042NSEC3 6904DDUC3 69042RSC3 69042RS1C3 69042RSHC3 6904PPC3 69042RSRC3 6904LLUC3
Out of stock
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 37mm
- Width:
- 9mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 20mm |
|---|---|
| D | 37mm |
| B | 9mm |
| Dynamic load C | 6.37 kN |
| Static load Co | 3.65 kN |
| Fatigue load limit Pu | 0.156 kN |
| Reference speed | 43000 rpm |
| Limiting speed | 12000 rpm |
| Weight | 0.038 kg |
| d2 | 24.2mm |
| D2 | 32.8mm |
| r1r2 min | 0.3mm |
| da min | 22mm |
| da max | 24mm |
| Da max | 35mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.02 |
| Calculation factor f0 | 15 |
