SKU: 6901/C3-NACHI

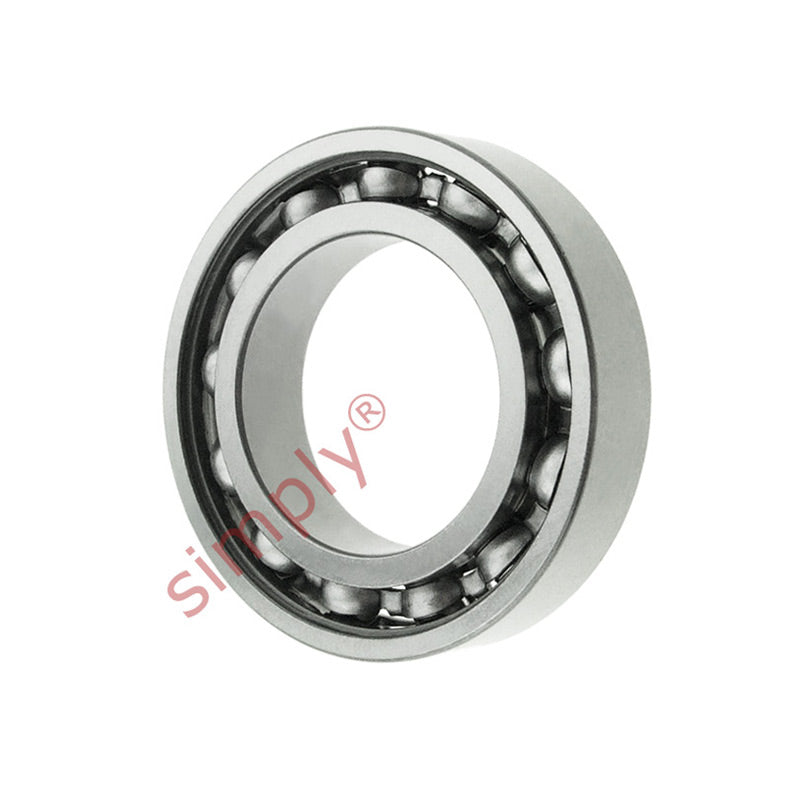

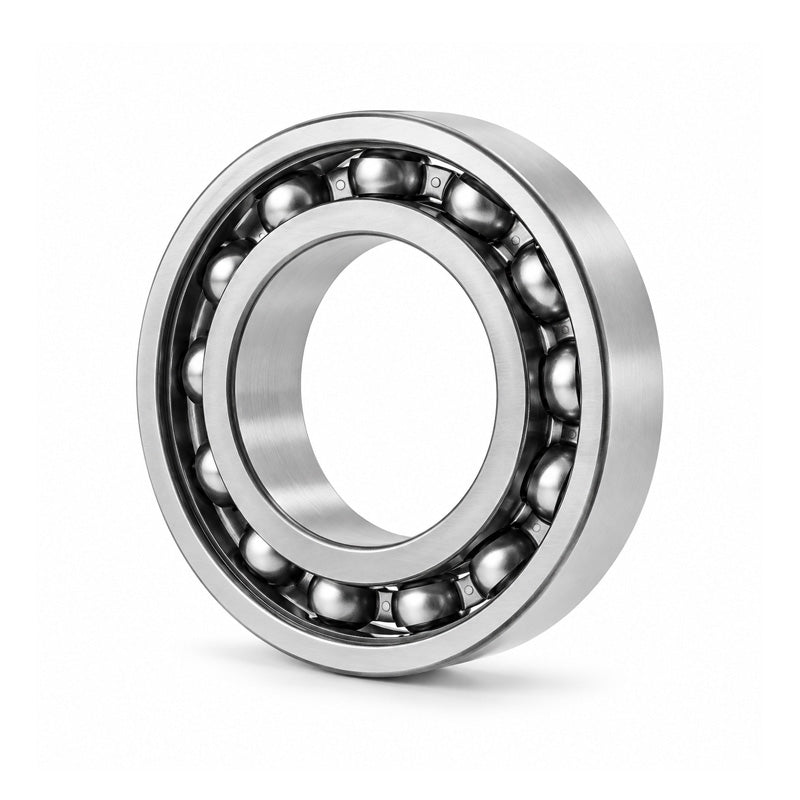

NACHI 6901C3 Thin Section Open Deep Groove Ball Bearing 12x24x6mm
NACHI 6901C3 Thin Section Open Deep Groove Ball Bearing 12x24x6mm
Equivalent to: 61901C3
Out of stock
Description
Description
|
NACHI Open Type Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This type of bearing consists of inner and outer rings, balls and a cage. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 24mm
- Width:
- 6mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 12mm |
|---|---|
| Outside Diameter D | 24mm |
| Width B | 6mm |
| Min radius r | 0.3mm |
| Dynamic load | 2700 kN |
| Static load | 1320 kN |
| Max speed in oil | 36000 rpm |
| Max speed in grease | 30000 rpm |
| da min | 14mm |
| Da max | 22mm |
| ra max | 0.3mm |
| Weight | 0.011 kg |
