SKU: 6900-FO-LLU-MAX-END

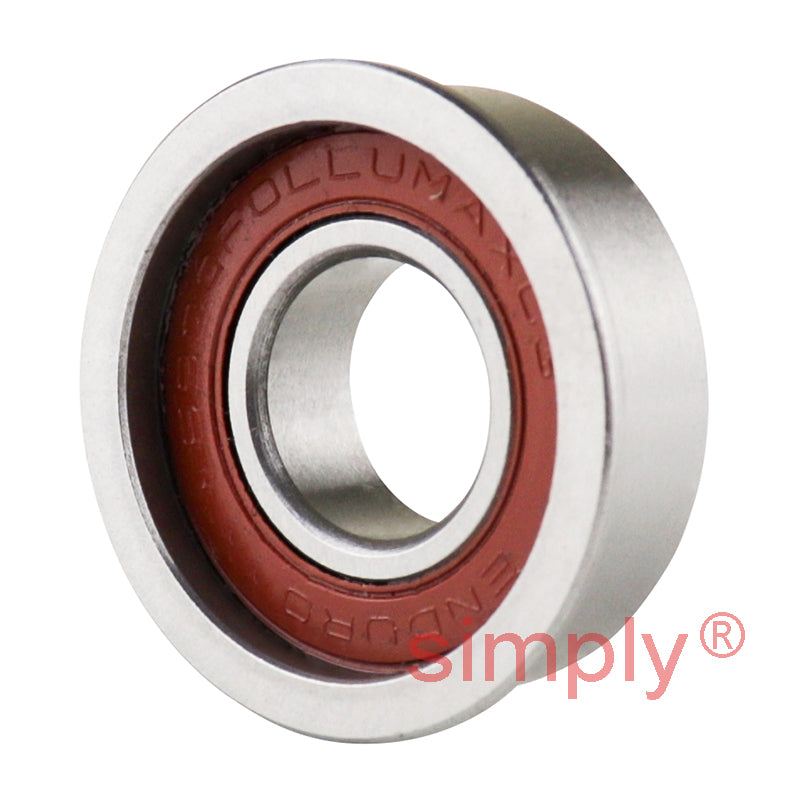

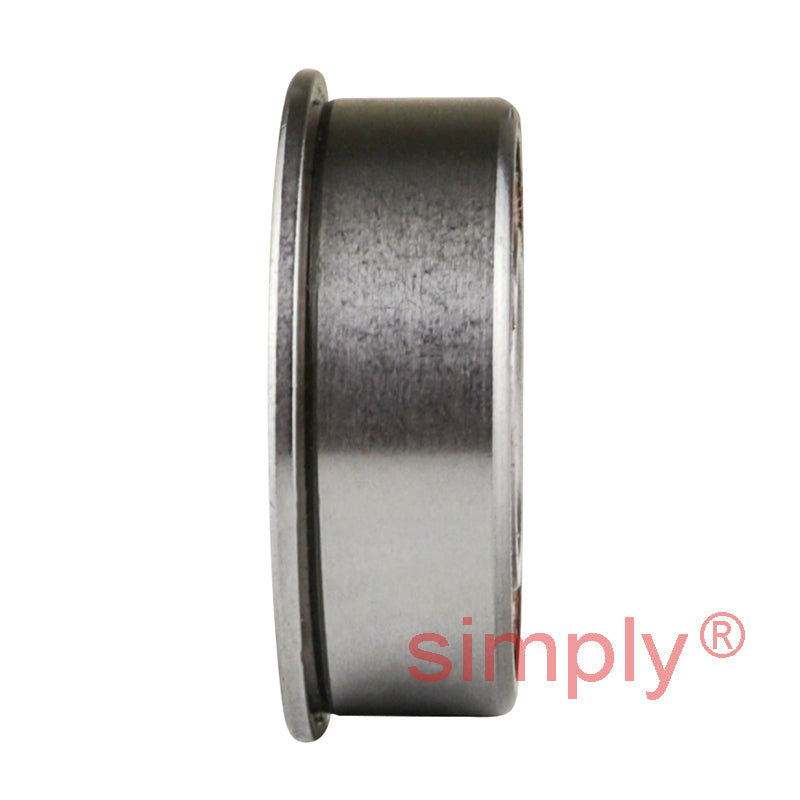

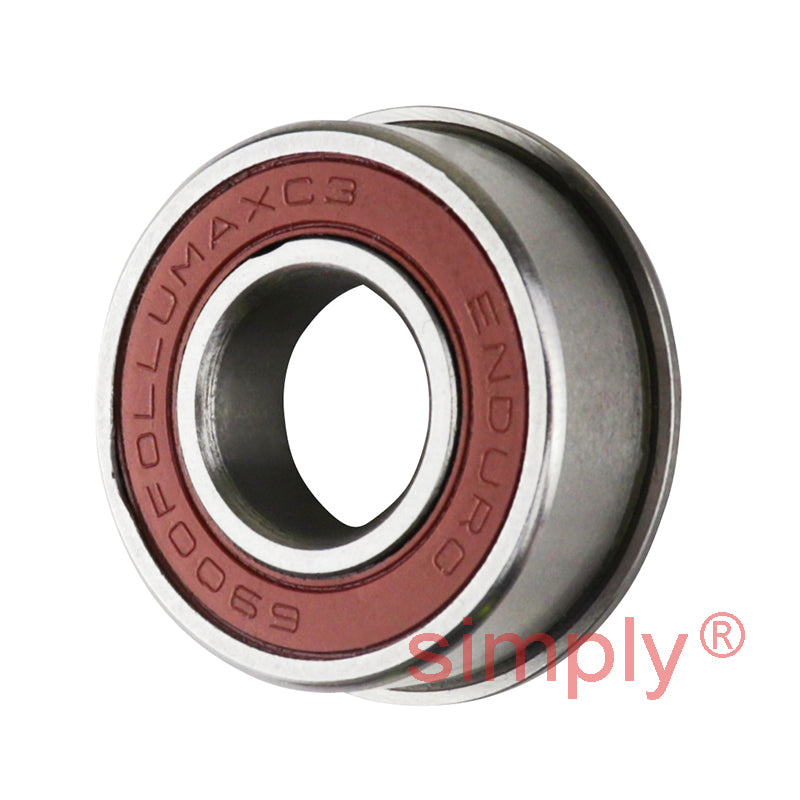

ENDURO 6900FOLLUMAX Sealed Flanged Deep Groove Bearing 10x22/24x6/8mm
Equivalent to: 6900FO2RSMAX 61900FOLLUMAX 61900FO2RSMAX
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Enduro Flanged Rubber Sealed Deep Groove Ball Bearings: A commonly used bearing, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. The have a larger diameter flange on one side of the bearing making it ideal to press into housings, once its fully pressed it will stop against the shoulder of the flange. Typically found in cycle wheel cranks and suspension systems. |
Note: These bearings may feature 'C3' on the box, this is not in reference to internal clearance and is a manufacturer code.
- Brand / Quality:
- Enduro - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 22mm
- Width:
- 8mm
- Seals / Shields:
- Rubber Sealed
Technical
| Inside Diameter | 10mm |
|---|---|
| Outside Diameter | 22mm |
| Outside Diameter with Flange | 24mm |
| Width | 6mm |
| Width with extended Inner Race | 8mm |
| Static Load | 2.157 kN |
| Weight | 11.5 g |
