SKU: 6864/C3-NACHI

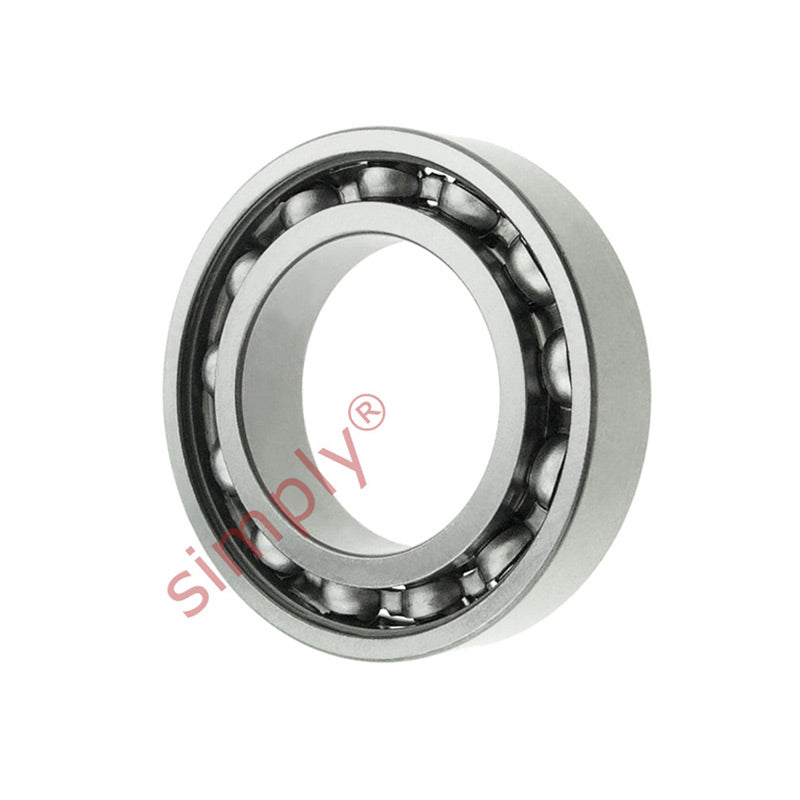

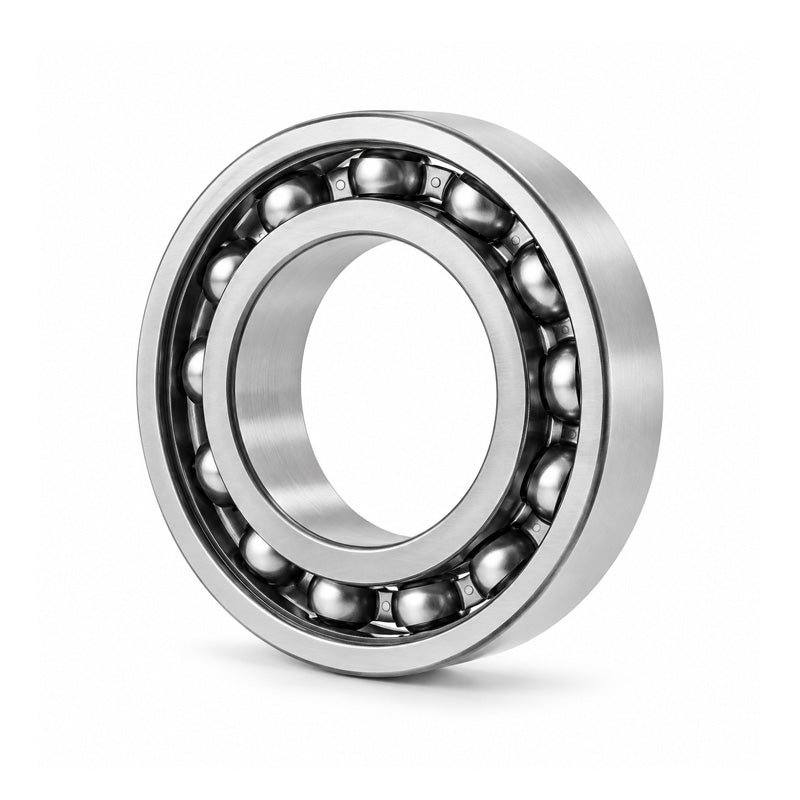

NACHI 6864C3 Thin Section Open Deep Groove Ball Bearing 320x400x38mm
NACHI 6864C3 Thin Section Open Deep Groove Ball Bearing 320x400x38mm
Equivalent to: 61864C3
Out of stock
Description
Description
|
NACHI Open Type Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This type of bearing consists of inner and outer rings, balls and a cage. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 320mm
- Outside Diameter:
- 400mm
- Width:
- 38mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 320mm |
|---|---|
| Outside Diameter D | 400mm |
| Width B | 38mm |
| Min radius r | 2.1mm |
| Dynamic load | 164000 kN |
| Static load | 218000 kN |
| Max speed in oil | 1600 rpm |
| Max speed in grease | 1400 rpm |
| da min | 330mm |
| Da max | 389mm |
| ra max | 2mm |
| Weight | 10.9 kg |
