SKU: 6844C3-NTN

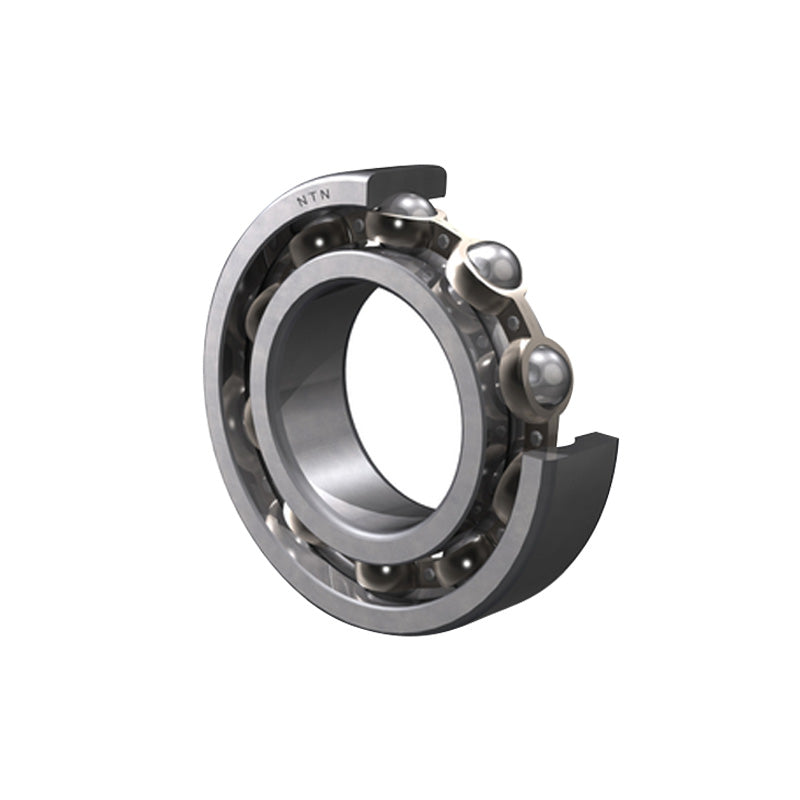

NTN 6844C3 Open Type Deep Groove Ball Bearing 220x270x24mm
NTN 6844C3 Open Type Deep Groove Ball Bearing 220x270x24mm
Regular price
€1.206,95
ex VAT
Regular price
Sale price
€1.206,95
ex VAT
Equivalent to: 61844C3 61844TC3 61844C3 1844SC3 61844YC3
In stock
Price Break
3+
€917,13
5+
€865,60
10+
€855,30
25+
€844,99
49+
€834,69
74+
€824,38
99+
€772,86
199+
€762,56
249+
€752,25
499+
€741,95
999+
€721,34
Quantity
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 220mm
- Outside Diameter:
- 270mm
- Width:
- 24mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 220mm |
| D | 270mm |
| B | 24mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 84.5 kN |
| C<sub>or</sub> | 98 kN |
| C<sub>u</sub> | 4.15 kN |
| f<sub>0</sub> | 16 kN |
| Grease | 2100 rpm |
| Oil | 2400 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 228mm |
| D<sub>a</sub> Max. | 262mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight | 3 kg |
