SKU: 6819-ZZ/C3-NACHI

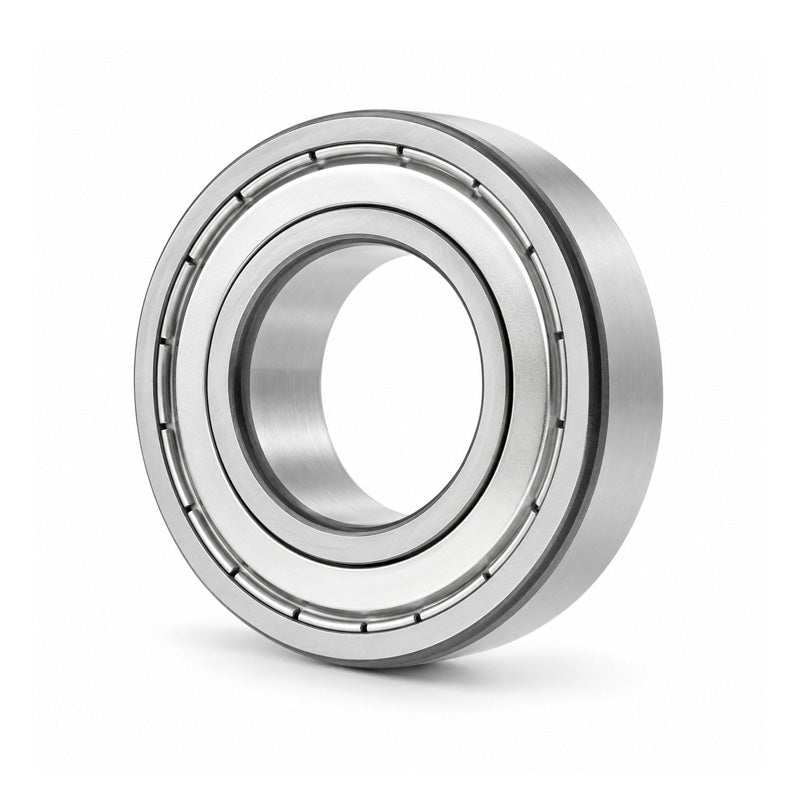

NACHI 6819ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 95x120x13mm
NACHI 6819ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 95x120x13mm
Equivalent to: 6819ZZEC3 68192ZC3 6819.2ZC3 6819KDDC3 6819DDC3 68192ZRC3 6819FFC3 61819ZZEC3 61819ZZC3 618192ZC3 61819.2ZC3 61819KDDC3 61819DDC3 618192ZRC3 61819FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 120mm
- Width:
- 13mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 95mm |
|---|---|
| Outside Diameter D | 120mm |
| Width B | 13mm |
| Min radius r | 1mm |
| Dynamic load | 19300 kN |
| Static load | 20500 kN |
| Max speed | 5000 rpm |
| da min | 100mm |
| Da max | 115mm |
| ra max | 1mm |
| Weight | 0.298 kg |
