SKU: 6813-ZZ-NACHI

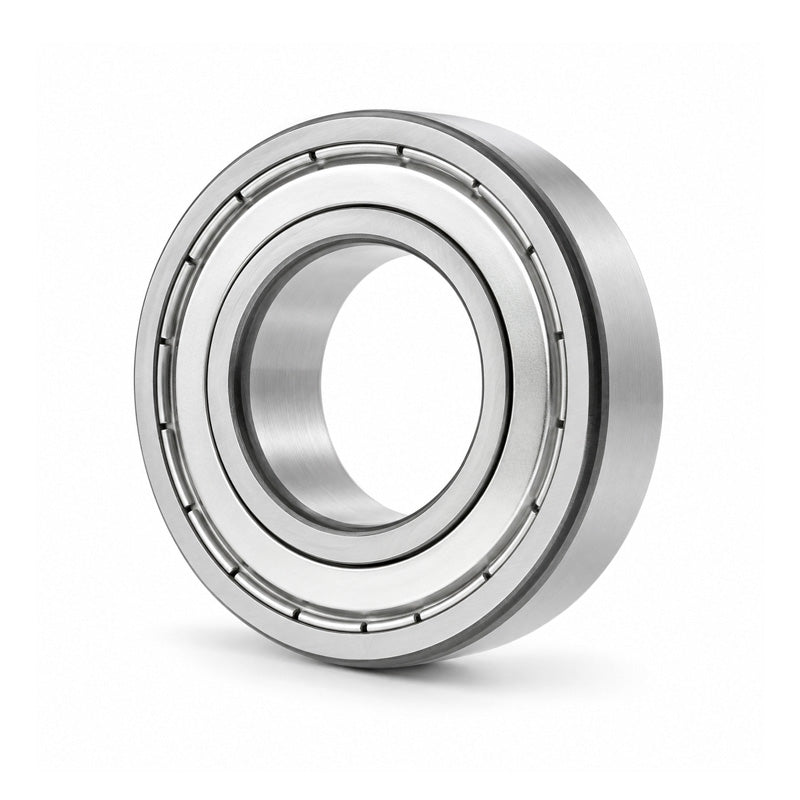

NACHI 6813ZZ Thin Section Metal Shielded Deep Groove Ball Bearing 65x85x10mm
NACHI 6813ZZ Thin Section Metal Shielded Deep Groove Ball Bearing 65x85x10mm
Equivalent to: 6813ZZE 68132Z 6813.2Z 6813KDD 6813DD 68132ZR 6813FF 61813ZZE 61813ZZ 618132Z 61813.2Z 61813KDD 61813DD 618132ZR 61813FF
Out of stock
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 85mm
- Width:
- 10mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 65mm |
|---|---|
| Outside Diameter D | 85mm |
| Width B | 10mm |
| Min radius r | 0.6mm |
| Dynamic load | 11900 kN |
| Static load | 11500 kN |
| Max speed | 7500 rpm |
| da min | 69mm |
| Da max | 81mm |
| ra max | 0.6mm |
| Weight | 0.125 kg |
