SKU: 6811-ZZ-NACHI

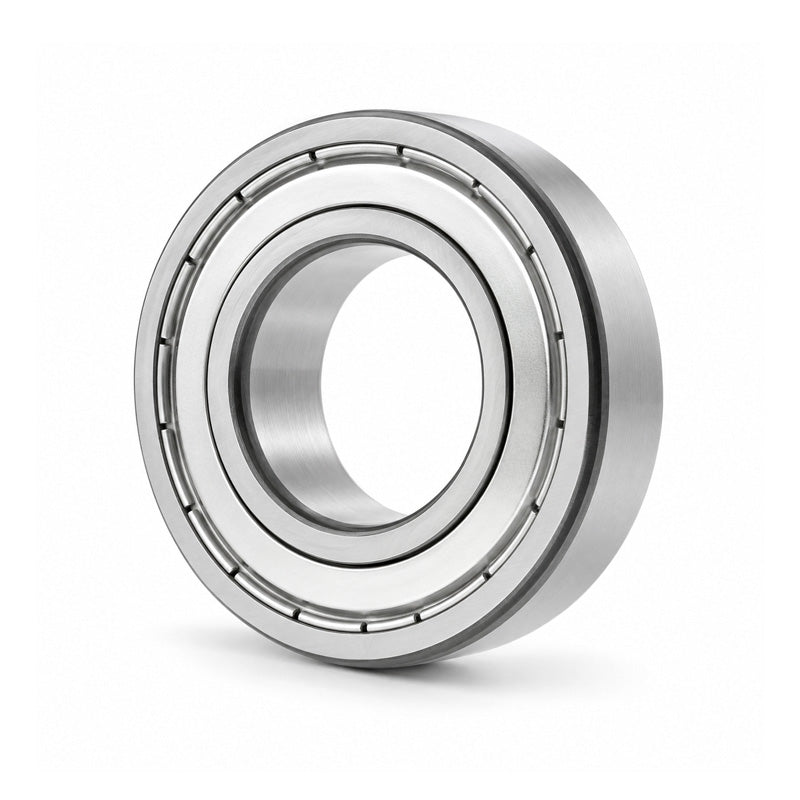

NACHI 6811ZZ Thin Section Metal Shielded Deep Groove Ball Bearing 55x72x9mm
NACHI 6811ZZ Thin Section Metal Shielded Deep Groove Ball Bearing 55x72x9mm
Equivalent to: 6811ZZE 68112Z 6811.2Z 6811KDD 6811DD 68112ZR 6811FF 61811ZZE 61811ZZ 618112Z 61811.2Z 61811KDD 61811DD 618112ZR 61811FF
Out of stock
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 72mm
- Width:
- 9mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 55mm |
|---|---|
| Outside Diameter D | 72mm |
| Width B | 9mm |
| Min radius r | 0.3mm |
| Dynamic load | 8800 kN |
| Static load | 8100 kN |
| Max speed | 8700 rpm |
| da min | 57mm |
| Da max | 70mm |
| ra max | 0.3mm |
| Weight | 0.083 kg |
