SKU: 6811-ZZ/C3-NACHI

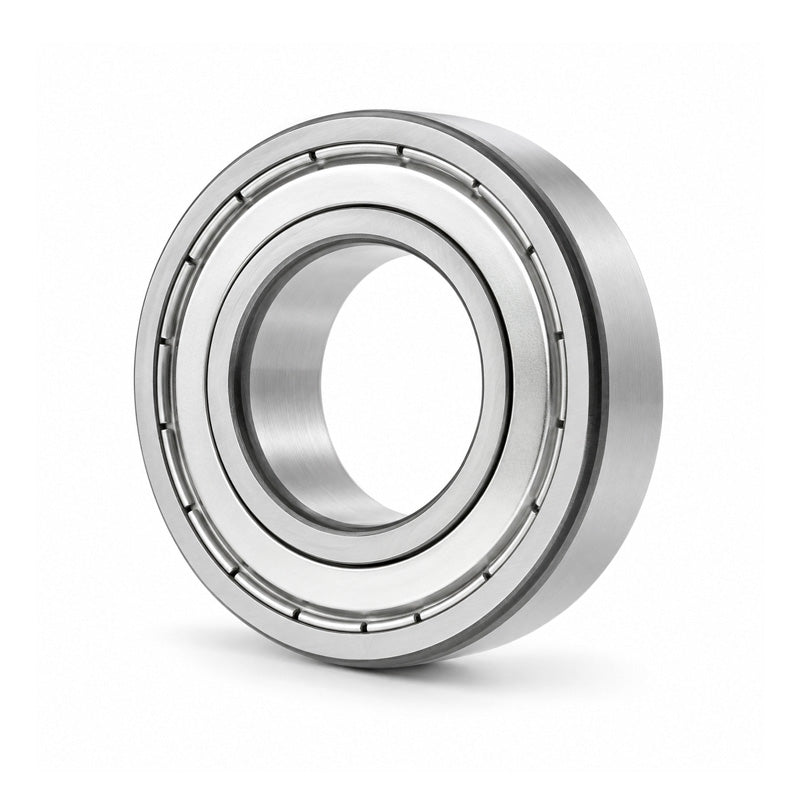

NACHI 6811ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 55x72x9mm
NACHI 6811ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 55x72x9mm
Equivalent to: 6811ZZEC3 68112ZC3 6811.2ZC3 6811KDDC3 6811DDC3 68112ZRC3 6811FFC3 61811ZZEC3 61811ZZC3 618112ZC3 61811.2ZC3 61811KDDC3 61811DDC3 618112ZRC3 61811FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 72mm
- Width:
- 9mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 55mm |
|---|---|
| Outside Diameter D | 72mm |
| Width B | 9mm |
| Min radius r | 0.3mm |
| Dynamic load | 8800 kN |
| Static load | 8100 kN |
| Max speed | 8700 rpm |
| da min | 57mm |
| Da max | 70mm |
| ra max | 0.3mm |
| Weight | 0.083 kg |
