SKU: 6806-ZZE-NACHI

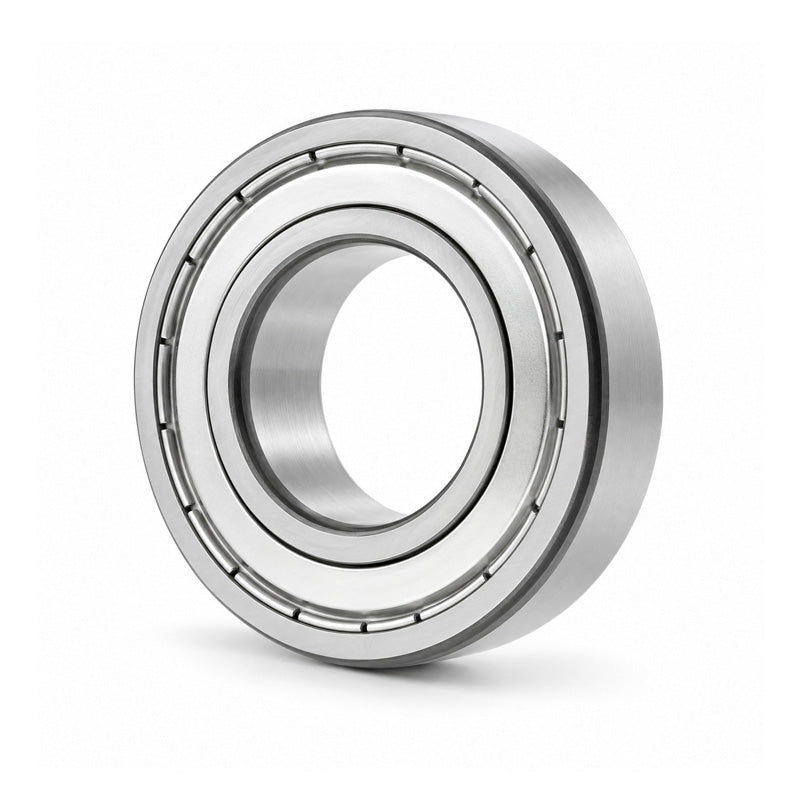

NACHI 6806ZZE Thin Section Metal Shielded Deep Groove Ball Bearing 30x42x7mm
NACHI 6806ZZE Thin Section Metal Shielded Deep Groove Ball Bearing 30x42x7mm
Equivalent to: 6806ZZ 68062Z 6806.2Z 6806KDD 6806DD 68062ZR 6806FF 61806ZZE 61806ZZ 618062Z 61806.2Z 61806KDD 61806DD 618062ZR 61806FF
Out of stock
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 42mm
- Width:
- 7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 30mm |
|---|---|
| Outside Diameter D | 42mm |
| Width B | 7mm |
| Min radius r | 0.3mm |
| Dynamic load | 5350 kN |
| Static load | 3800 kN |
| Max speed | 15000 rpm |
| da min | 32mm |
| Da max | 40mm |
| ra max | 0.3mm |
| Weight | 0.026 kg |
