SKU: 6803LLB/5K-NTN

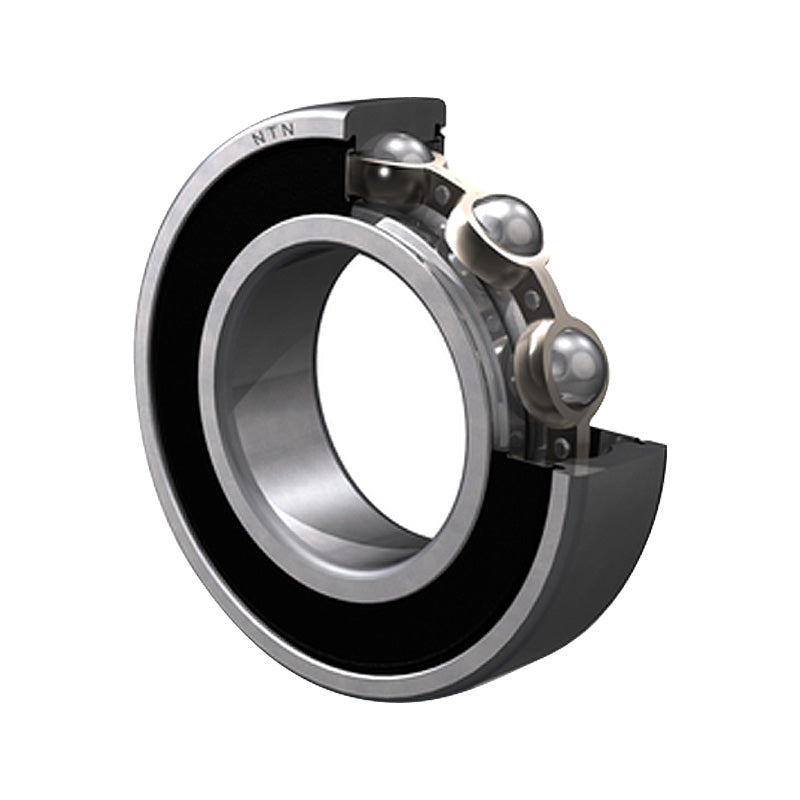

NTN 6803LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 17x26x5mm
NTN 6803LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 17x26x5mm
Regular price
€14,95
ex VAT
Regular price
Sale price
€14,95
ex VAT
Equivalent to: 6803LLBCM 61803LLBCM 6803LLB 61803LLB 68032NKE 6803VV 68032RSL 68032RZ
In stock
Price Break
3+
€11,29
5+
€10,66
10+
€10,53
25+
€10,41
49+
€10,28
74+
€10,15
99+
€9,52
199+
€9,39
249+
€9,26
499+
€9,14
999+
€8,88
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 26mm
- Width:
- 5mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 17mm |
| D | 26mm |
| B | 5mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 2.47 kN |
| C<sub>or</sub> | 1.46 kN |
| C<sub>u</sub> | 0.102 kN |
| f<sub>0</sub> | 16.1 kN |
| Grease | 24000 rpm |
| Oil | 28000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 19mm |
| d<sub>a</sub> Max. | 19.5mm |
| D<sub>a</sub> Max. | 24mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight | 0.008 kg |
