SKU: 6800-ZZE/C3-NACHI

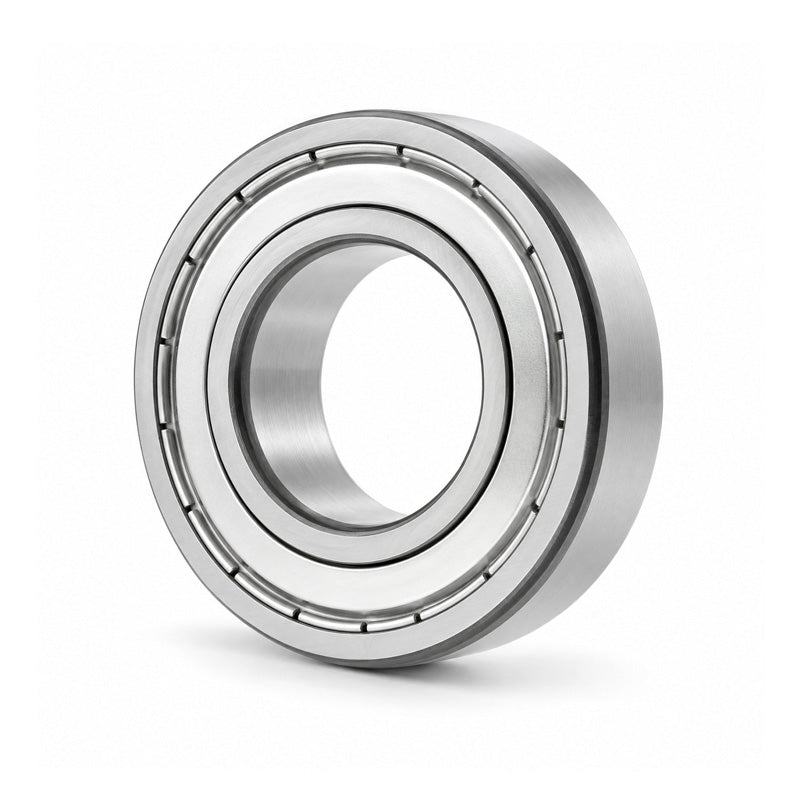

NACHI 6800ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 10x19x5mm
NACHI 6800ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 10x19x5mm
Equivalent to: 6800ZZC3 68002ZC3 6800.2ZC3 6800KDDC3 6800DDC3 68002ZRC3 6800FFC3 61800ZZEC3 61800ZZC3 618002ZC3 61800.2ZC3 61800KDDC3 61800DDC3 618002ZRC3 61800FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 19mm
- Width:
- 5mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 10mm |
|---|---|
| Outside Diameter D | 19mm |
| Width B | 5mm |
| Min radius r | 0.3mm |
| Dynamic load | 2120 kN |
| Static load | 985 kN |
| Max speed | 37000 rpm |
| da min | 12mm |
| Da max | 17mm |
| ra max | 0.3mm |
| Weight | 0.005 kg |
