SKU: 6800-2NSE/C3-NACHI

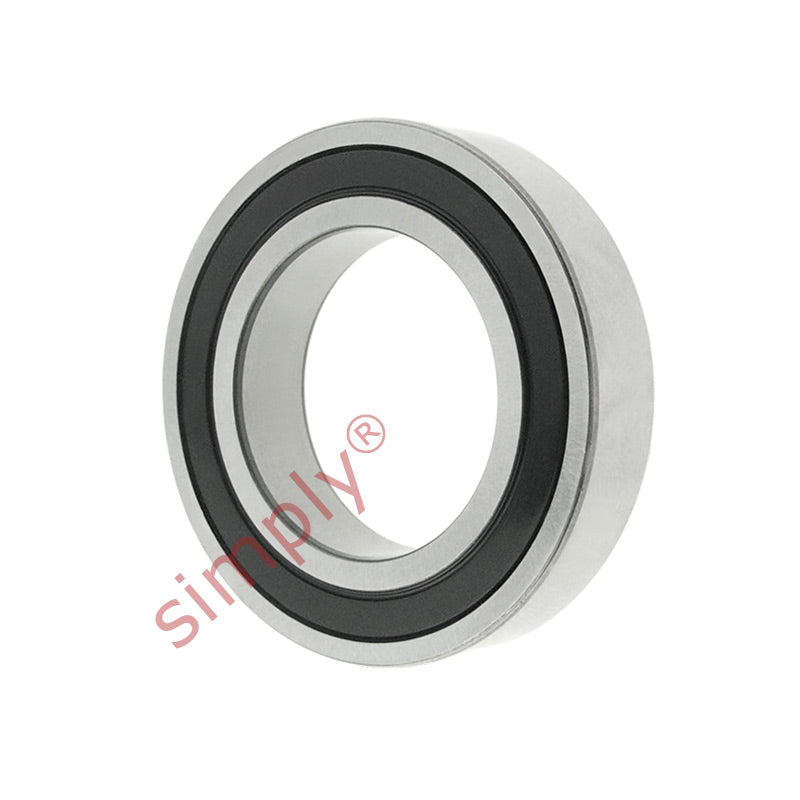

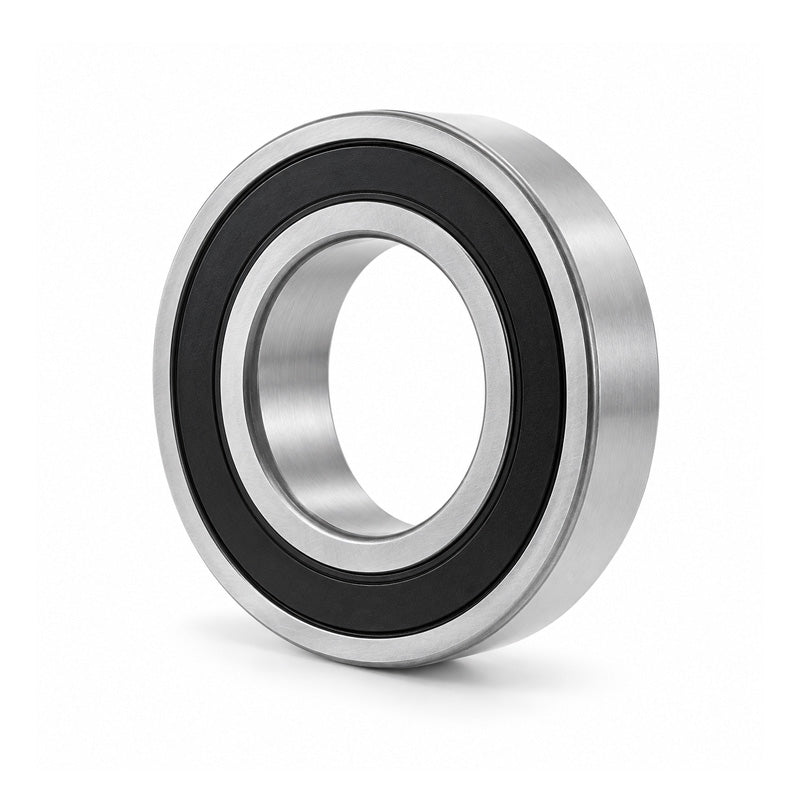

NACHI 68002NSEC3 Thin Section Contact Rubber Sealed Deep Groove Ball Bearing 10x19x5mm
NACHI 68002NSEC3 Thin Section Contact Rubber Sealed Deep Groove Ball Bearing 10x19x5mm
Equivalent to: 6800NSEC3 6800DUC3 6800RSC3 6800RSHC3 6800PC3 6800RSRC3 6800LUC3 61800NSEC3 61800DUC3 61800RSC3 61800RSHC3 61800PC3 61800RSRC3 61800LUC3 6800DDUC3 68002RSC3 68002RS1C3 68002RSHC3 6800PPC3 68002RSRC3 6800LLUC3 618002NSEC3 61800DDUC3 618002RSC3 618002RS1C3 618002RSHC3 61800PPC3 618002RSRC3 61800LLUC3
Out of stock
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 19mm
- Width:
- 5mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 10mm |
|---|---|
| Outside Diameter D | 19mm |
| Width B | 5mm |
| Min radius r | 0.3mm |
| Dynamic load | 2120 kN |
| Static load | 985 kN |
| Max speed | 37000 rpm |
| da min | 12mm |
| Da max | 17mm |
| ra max | 0.3mm |
| Weight | 0.005 kg |
