SKU: 67985D/67920/Y1S-67920-TIM

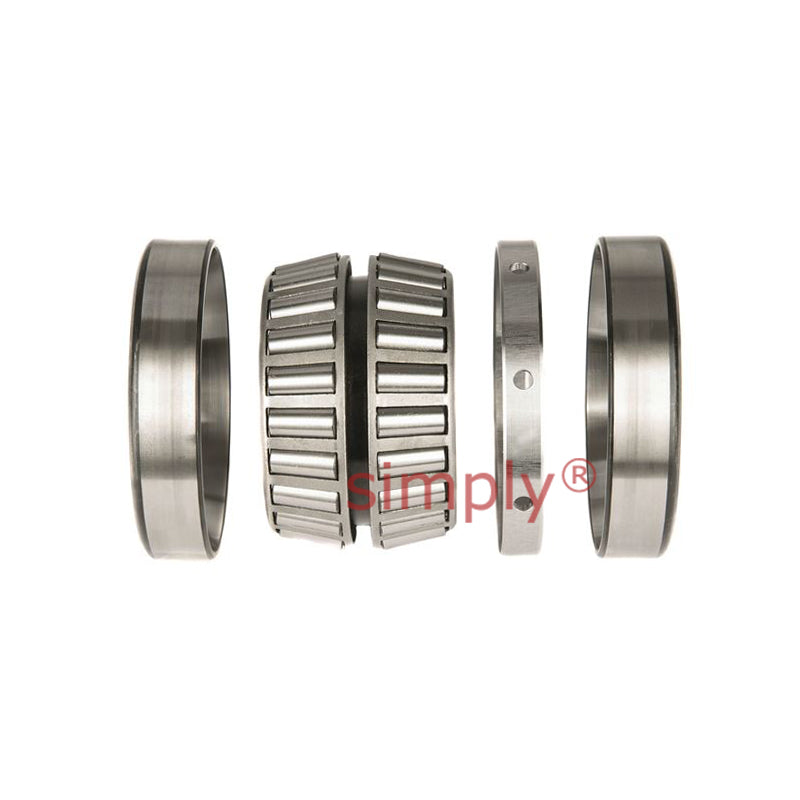

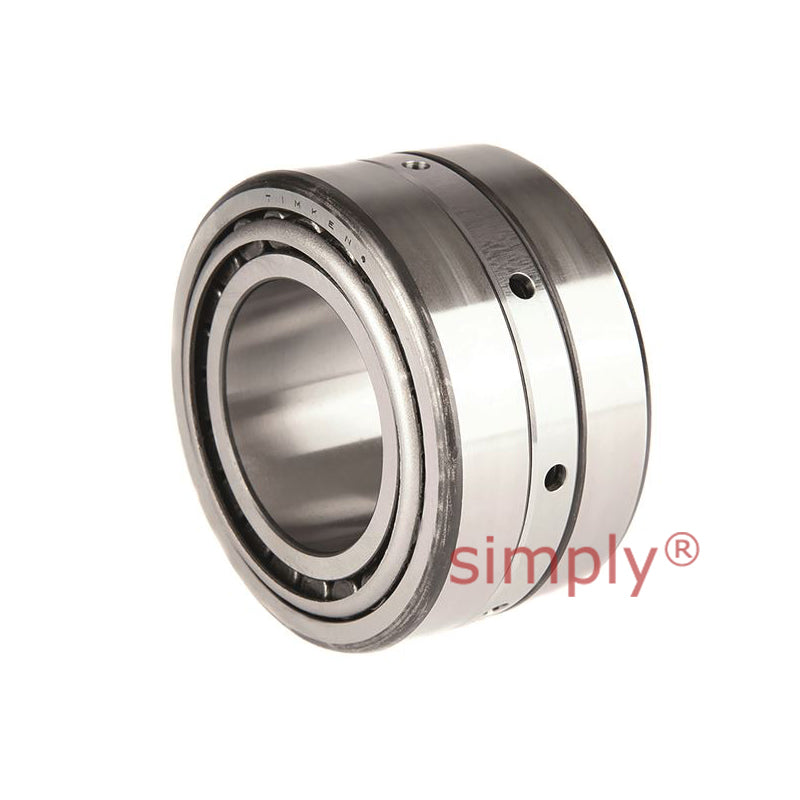

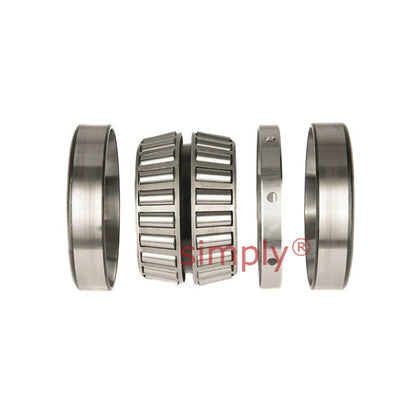

Timken 67985D/67920/Y1S-67920 TDI Double Inner Race Taper Roller Bearing 8.125x11.125x3.4375x3.4375 inch
Timken 67985D/67920/Y1S-67920 TDI Double Inner Race Taper Roller Bearing 8.125x11.125x3.4375x3.4375 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 206.38mm = 8.125 (8-1/8) inch
- Outside Diameter:
- 282.58mm = 11.125 (11-1/8) inch
- Width:
- 87.31mm = 3.437 (3-7/16) inch
Technical
Technical
| d | 206.375mm = 8.125 inch |
|---|---|
| D | 282.575mm = 11.125 inch |
| T | 87.312mm = 3.4375 inch |
| C | 87.312mm = 3.4375 inch |
| Dynamic (1) C1 | 684000N |
| Factors (5) e | 0.51 |
| Factors (5) Y1 | 1.33 |
| Factors (5) Y2 | 1.97 |
| Dynamic (2) C90 | 102000N |
| Dynamic (2) Ca90 | 88700N |
| Dynamic (2) C90(2) | 177000N |
| Factors (5) K | 1.15 |
| Shaft max shaft fillet radius R (3) | 0.8mm = 0.03 inch |
| Shaft backing shoulder diameter da | 219mm = 8.62 inch |
| Housing max shaft fillet radius r (3) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Db | 260mm = 10.24 inch |
| G1 | 820 |
| G2 | 172 |
| Cg | 0.1388 |
