SKU: 67780/67720CD/X2S67780-TIM

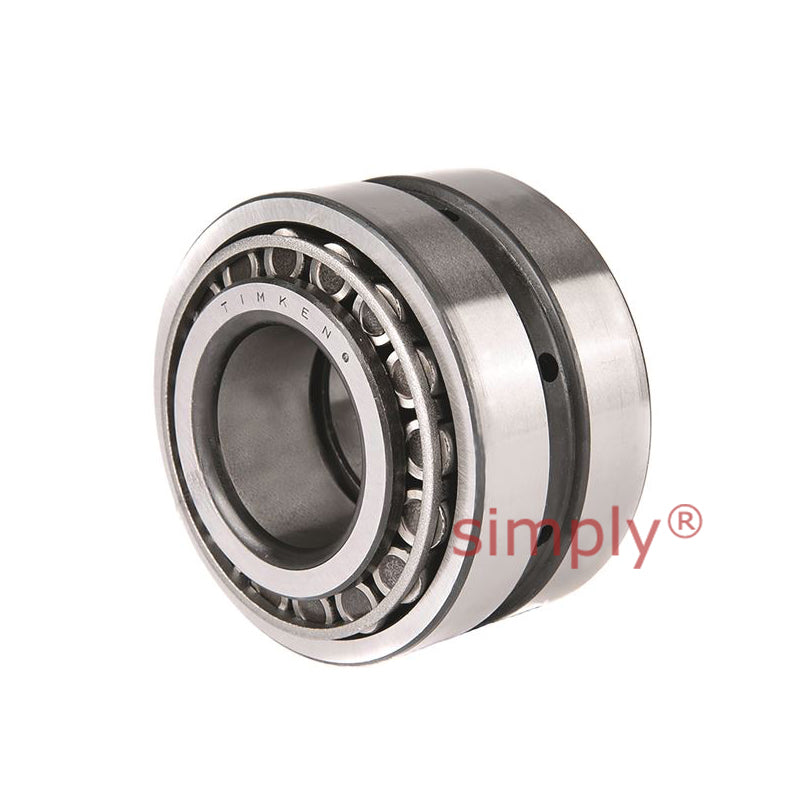

Timken 67780/67720CD/X2S67780 TDO Double Outer Race Taper Roller Bearing 6.5x9.75x4.0625x3.3125 inch
Timken 67780/67720CD/X2S67780 TDO Double Outer Race Taper Roller Bearing 6.5x9.75x4.0625x3.3125 inch
Out of stock
Description
Description

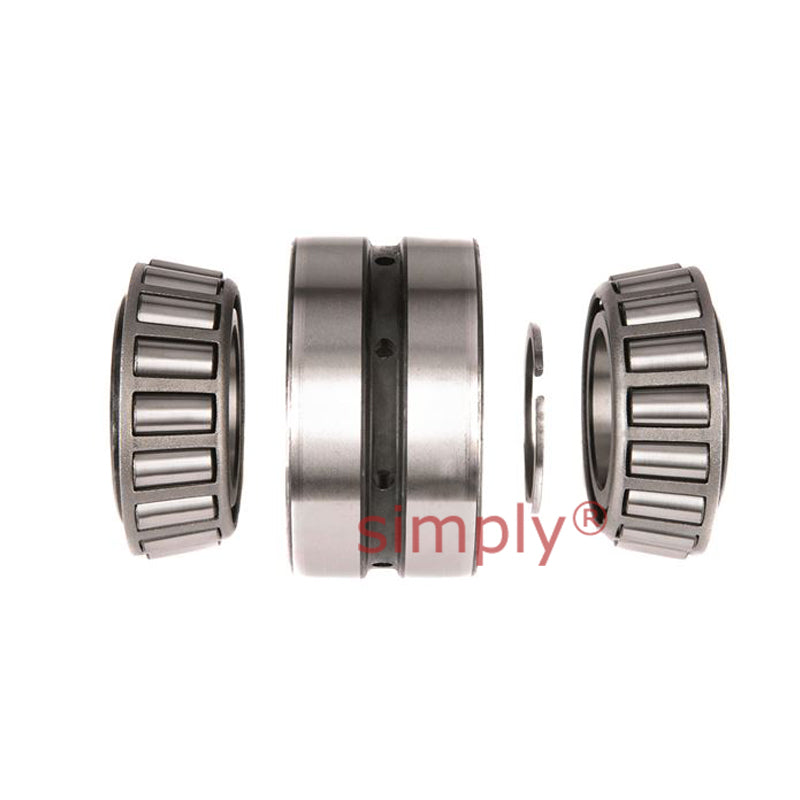

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 165.10mm = 6.5 inch
- Outside Diameter:
- 247.65mm = 9.75 inch
- Width:
- 103.19mm = 4.0625 inch
Technical
Technical
| d | 165.1mm = 6.5 inch |
|---|---|
| D | 247.65mm = 9.75 inch |
| T | 103.188mm = 4.0625 inch |
| C | 84.138mm = 3.3125 inch |
| Dynamic (1) C1 | 653000N |
| Factors (5) e | 0.44 |
| Factors (5) Y1 | 1.54 |
| Factors (5) Y2 | 2.29 |
| Dynamic (2) C90 | 97200N |
| Dynamic (2) Ca90 | 73200N |
| Dynamic (2) C90(2) | 169000N |
| Factors (5) K | 1.33 |
| Shaft max shaft fillet radius R(3) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter db | 185mm = 7.28 inch |
| Housing max shaft fillet radius r(3) | 0.8mm = 0.03 inch |
| Housing backing shoulder diameter Da | 240mm = 9.45 inch |
| Pin Ka | 19mm = 0.75 inch |
| Pin Kb | 7.1mm = 0.28 inch |
| G1 | 622 |
| G2 | 122 |
| Cg | 0.1214 |
