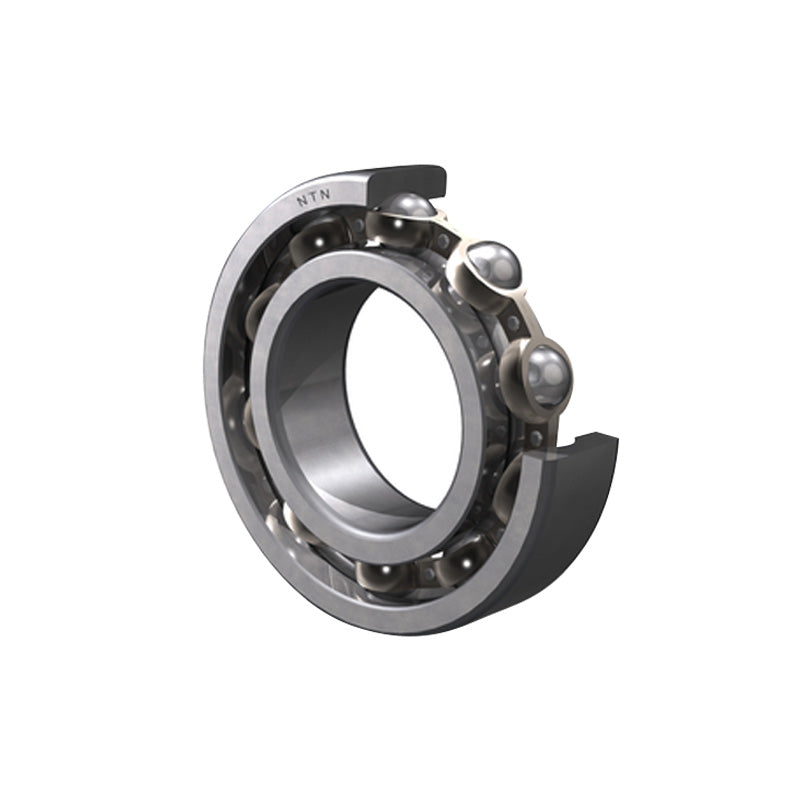

NTN 6406C3 Open Type Deep Groove Ball Bearing 30x90x23mm
NTN 6406C3 Open Type Deep Groove Ball Bearing 30x90x23mm
Regular price
€67,95
ex VAT
Regular price
Sale price
€67,95
ex VAT
Equivalent to: 406KC3 1406C3 406SC3 6406C3 3406C3 4CC3
In stock
Price Break
3+
€51,59
5+
€48,69
10+
€48,12
25+
€47,54
49+
€46,96
74+
€46,38
99+
€43,48
199+
€42,90
249+
€42,32
499+
€41,74
999+
€40,58
Quantity
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 30mm |
| D | 90mm |
| B | 23mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 48 kN |
| C<sub>or</sub> | 23.9 kN |
| C<sub>u</sub> | 1.86 kN |
| f<sub>0</sub> | 12.3 kN |
| Grease | 8800 rpm |
| Oil | 10000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 38mm |
| D<sub>a</sub> Max. | 82mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight | 0.735 kg |
