SKU: 634-2RS1-SKF

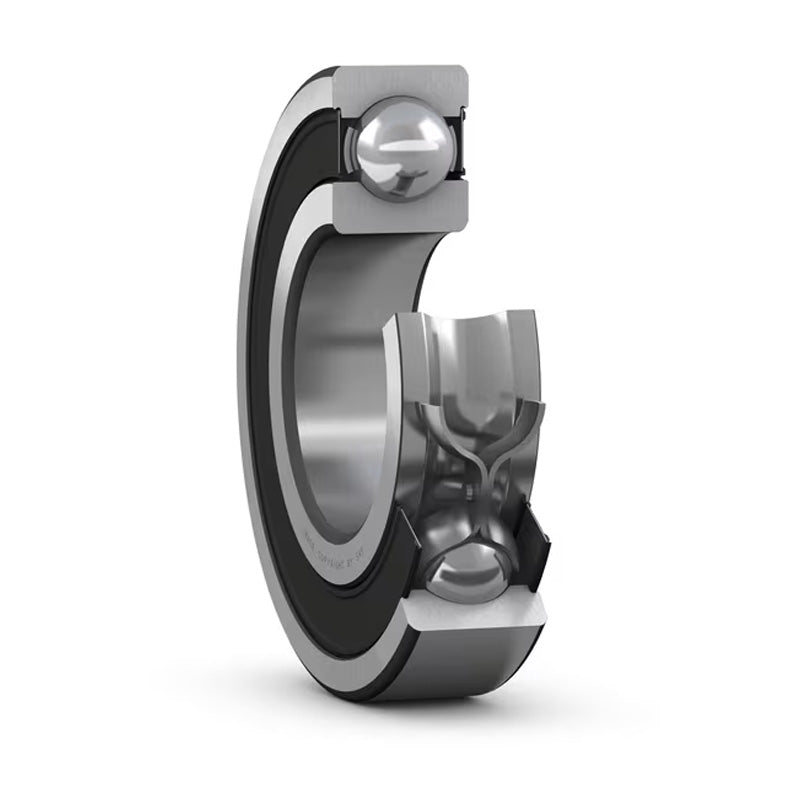

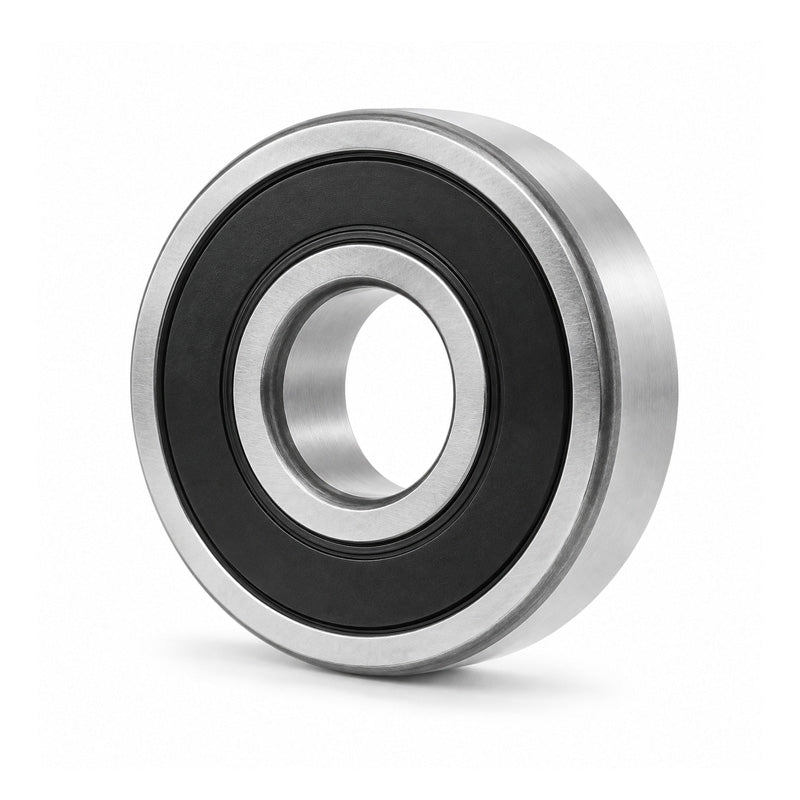

SKF 6342RS1 Rubber Sealed Deep Groove Ball Bearing 4x16x5mm
SKF 6342RS1 Rubber Sealed Deep Groove Ball Bearing 4x16x5mm
Equivalent to: 634NSE 634DU 634RS 634RSH 634P 634RSR 634LU 6342NSE 634DDU 6342RS 6342RSH 634PP 6342RSR 634LLU
Out of stock
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 4mm
- Outside Diameter:
- 16mm
- Width:
- 5mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 4mm |
|---|---|
| D | 16mm |
| B | 5mm |
| Dynamic load C | 1.11 kN |
| Static load Co | 0.38 kN |
| Fatigue load limit Pu | 0.016 kN |
| Reference speed | 130000 rpm |
| Limiting speed | 28000 rpm |
| Weight | 0.0108 kg |
| d1 | 8.4mm |
| D2 | 13.3mm |
| r1r2 min | 0.3mm |
| da min | 6.4mm |
| Da max | 13.6mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 8.4 |
