SKU: 6318C3-NTN

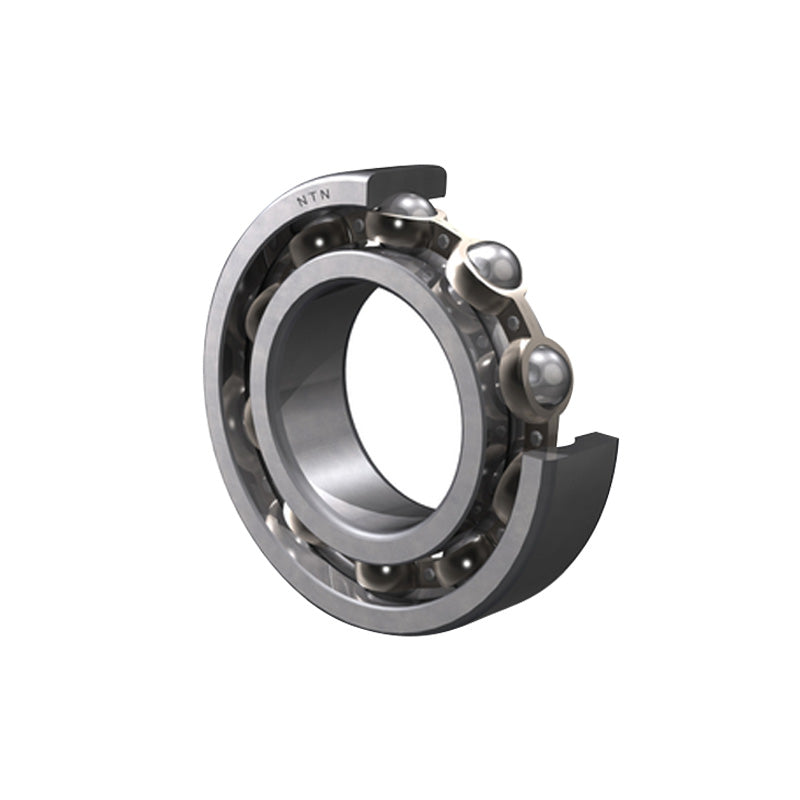

NTN 6318C3 Open Type Deep Groove Ball Bearing 90x190x43mm
NTN 6318C3 Open Type Deep Groove Ball Bearing 90x190x43mm
Regular price
€218,95
ex VAT
Regular price
Sale price
€218,95
ex VAT
Equivalent to: 318KC3 1318C3 318KSC3 6318C3 3318C3 19BC3
In stock
Price Break
3+
€165,70
5+
€156,39
10+
€154,53
25+
€152,67
49+
€150,81
74+
€148,94
99+
€139,64
199+
€137,77
249+
€135,91
499+
€134,05
999+
€130,33
Quantity
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 190mm
- Width:
- 43mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 90mm |
| D | 190mm |
| B | 43mm |
| r<sub>s</sub> min | 3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 158 kN |
| C<sub>or</sub> | 107 kN |
| C<sub>u</sub> | 7.1 kN |
| f<sub>0</sub> | 13.3 kN |
| Grease | 3600 rpm |
| Oil | 4200 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 103mm |
| D<sub>a</sub> Max. | 177mm |
| r<sub>as</sub> Max. | 2.5mm |
| Weight | 4.91 kg |
