SKU: 6315NR/C3-SKF

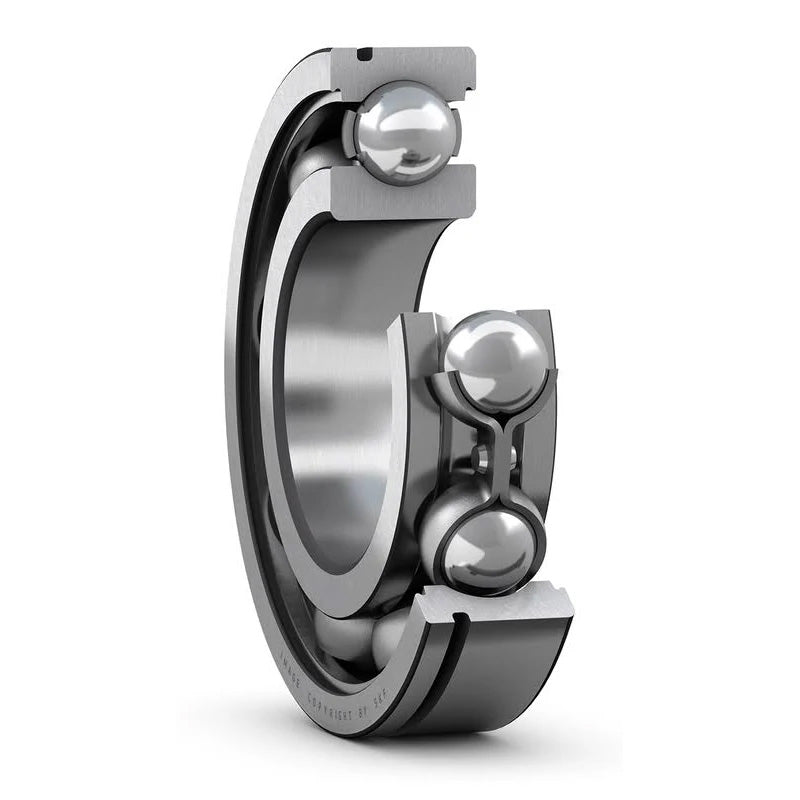

SKF 6315NRC3 Open Type Snap Ring Deep Groove Bearing 75x160x37mm
SKF 6315NRC3 Open Type Snap Ring Deep Groove Bearing 75x160x37mm
Regular price
€410,95
ex VAT
Regular price
Sale price
€410,95
ex VAT
In stock
Price Break
4+
€312,83
10+
€295,26
20+
€291,74
30+
€288,23
50+
€284,71
75+
€281,20
100+
€263,62
200+
€260,11
250+
€256,59
500+
€253,08
1000+
€246,05
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 160mm
- Width:
- 37mm
- Seals / Shields:
- None
- Clearance:
- C3
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 75mm |
|---|---|
| D | 160mm |
| B | 37mm |
| Dynamic load C | 119 kN |
| Static load Co | 76.5 kN |
| Fatigue load limit Pu | 3 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 5600 rpm |
| Weight | 3kg |
| Snap ring | SP 160 |
| d1 | 101mm |
| D2 | 139mm |
| D3 | 155.22mm |
| D4 | 169.7mm |
| b | 3.1mm |
| f | 2.82mm |
| C | 4.9mm |
| r1r2 min | 2.1mm |
| ro max | 0.6mm |
| da min | 87mm |
| Da max | 148mm |
| Db min | 172mm |
| ba min | 3.5mm |
| Ca max | 7.72mm |
| ra max | 2mm |
| Calc Factor kr | 0.03 |
| fo | 13 |
