SKU: 6312-NR-C3-FAG

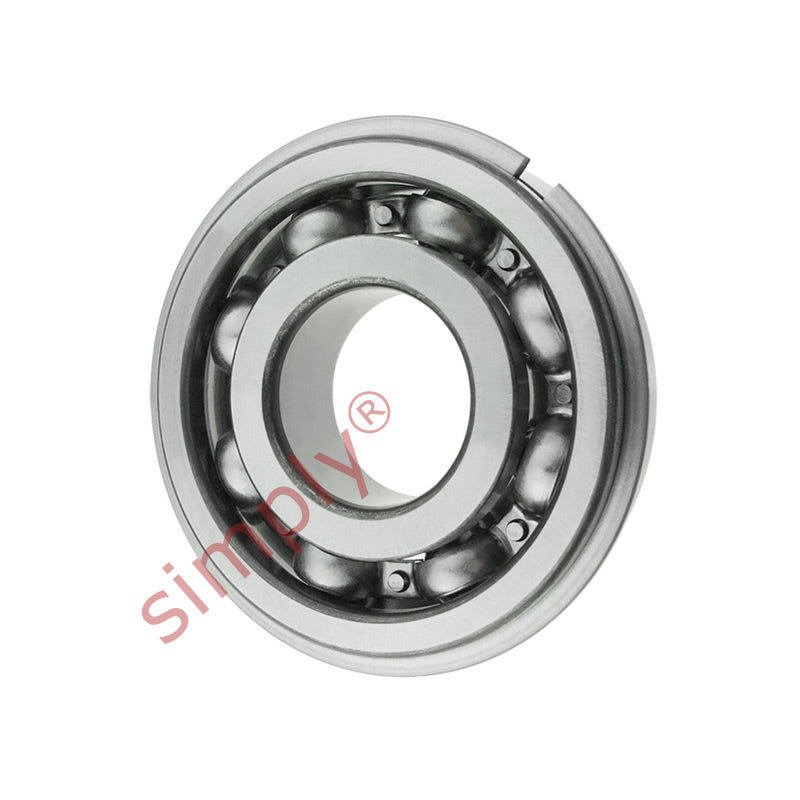

FAG 6312NRC3 Deep Groove Ball Bearing with Snap Ring 60x130x31mm
FAG 6312NRC3 Deep Groove Ball Bearing with Snap Ring 60x130x31mm
Regular price
€233,95
ex VAT
Regular price
Sale price
€233,95
ex VAT
In stock
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 130mm
- Width:
- 31mm
- Seals / Shields:
- None
- Clearance:
- C3

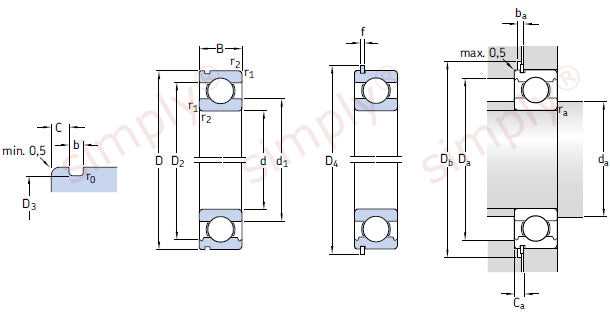

Technical
Technical
| d | 60mm |
|---|---|
| D | 130mm |
| B | 31mm |
| Dyamic load C | 85.2 kN |
| Static load Co | 52 kN |
| Fatigue load limit Pu | 2.2 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 7000 rpm |
| Mass | 1.7 kg |
| d1 | 81.9mm |
| d2 | 108mm |
| D2 | 112mm |
| r1r2 min | 2.1mm |
| da min | 72 |
