SKU: 6311C4-NTN

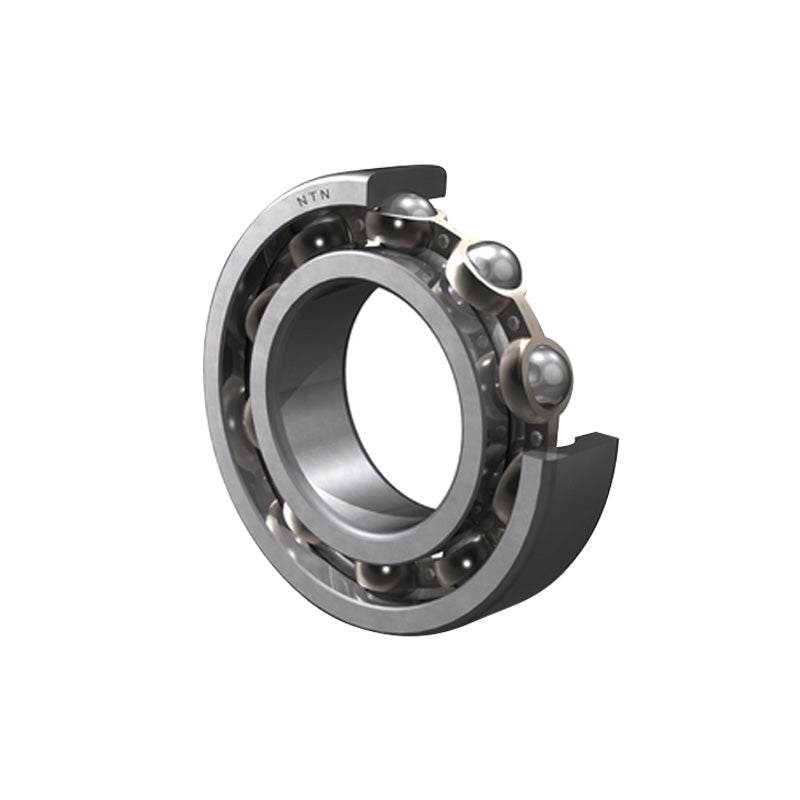

NTN 6311C4 Open Type Deep Groove Ball Bearing 55x120x29mm
NTN 6311C4 Open Type Deep Groove Ball Bearing 55x120x29mm
Regular price
€92,95
ex VAT
Regular price
Sale price
€92,95
ex VAT
Equivalent to: 311KC4 1311C4 311KSC4 6311C4 3311C4 12BC4
In stock
Price Break
3+
€70,49
5+
€66,53
10+
€65,74
25+
€64,94
49+
€64,15
74+
€63,36
99+
€59,40
199+
€58,61
249+
€57,82
499+
€57,02
999+
€55,44
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 120mm
- Width:
- 29mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 55mm |
| D | 120mm |
| B | 29mm |
| r<sub>s</sub> min | 2mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 79.5 kN |
| C<sub>or</sub> | 45 kN |
| C<sub>u</sub> | 3.5 kN |
| f<sub>0</sub> | 13.2 kN |
| Grease | 5800 rpm |
| Oil | 6800 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 64mm |
| D<sub>a</sub> Max. | 111mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 1.37 kg |
