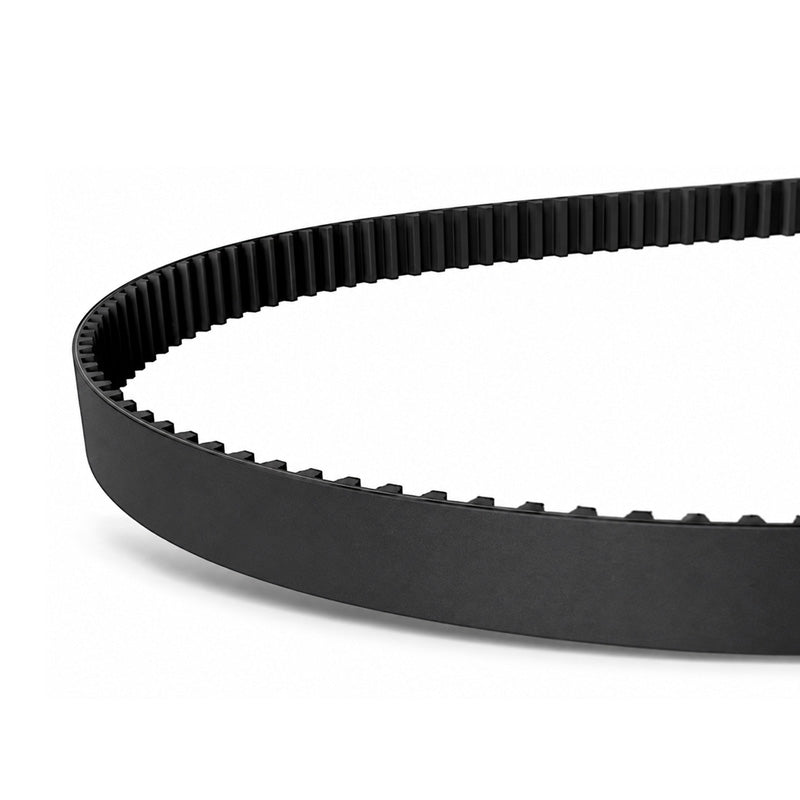

630H150 Transflex Synchronous Toothed Belt 1.50 inch Wide 63 inch Length 126 Teeth
630H150 Transflex Synchronous Toothed Belt 1.50 inch Wide 63 inch Length 126 Teeth
Regular price
€31,95
ex VAT
Regular price
Sale price
€31,95
ex VAT
In stock
Price Break
3+
€26,32
5+
€25,26
10+
€24,73
15+
€23,93
20+
€23,40
30+
€22,07
40+
€18,61
50+
€0,00
60+
€0,00
75+
€0,00
100+
€0,00
Quantity
Couldn't load pickup availability
Description
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
- Brand / Quality:
- Transflex - High Quality
- Belt Width Approx:
- 38.1mm = 1-1/2 inch
- Belt Depth Approx:
- 4.3mm
- Belt Length Approx:
- 1600.2mm = 63 inch
- Number of Teeth:
- 126
Technical
Technical
| Belt width | 1.50 inch = 38.10mm |
|---|---|
| Pitch length | 63 inch = 1600.2mm |
| Number of teeth | 126 |
| Tooth pitch t | 0.5 inch |
| Flank angle f | 40 degrees |
| Tooth height h<sub>t</sub> | 0.09015748 inch |
| Pitch zone u | 0.027007874 inch |
