SKU: 6308C4-NTN

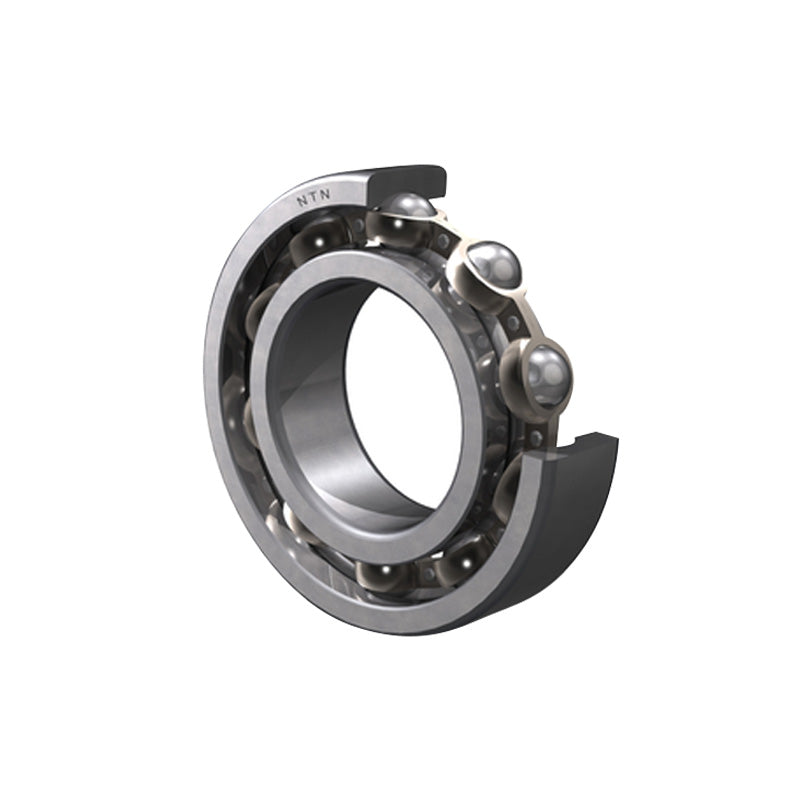

NTN 6308C4 Open Type Deep Groove Ball Bearing 40x90x23mm
NTN 6308C4 Open Type Deep Groove Ball Bearing 40x90x23mm
Regular price
€44,95
ex VAT
Regular price
Sale price
€44,95
ex VAT
Equivalent to: 308KC4 1308C4 308KSC4 6308C4 3308C4 9BC4
In stock
Price Break
3+
€33,54
5+
€31,65
10+
€31,27
25+
€30,90
49+
€30,52
74+
€30,14
99+
€28,26
199+
€27,88
249+
€27,51
499+
€27,13
999+
€26,38
Quantity
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 40mm |
| D | 90mm |
| B | 23mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 45 kN |
| C<sub>or</sub> | 24 kN |
| C<sub>u</sub> | 1.83 kN |
| f<sub>0</sub> | 13.2 kN |
| Grease | 7800 rpm |
| Oil | 9200 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 48mm |
| D<sub>a</sub> Max. | 82mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight | 0.63 kg |
