SKU: 6306-2RS2-C3-NKE

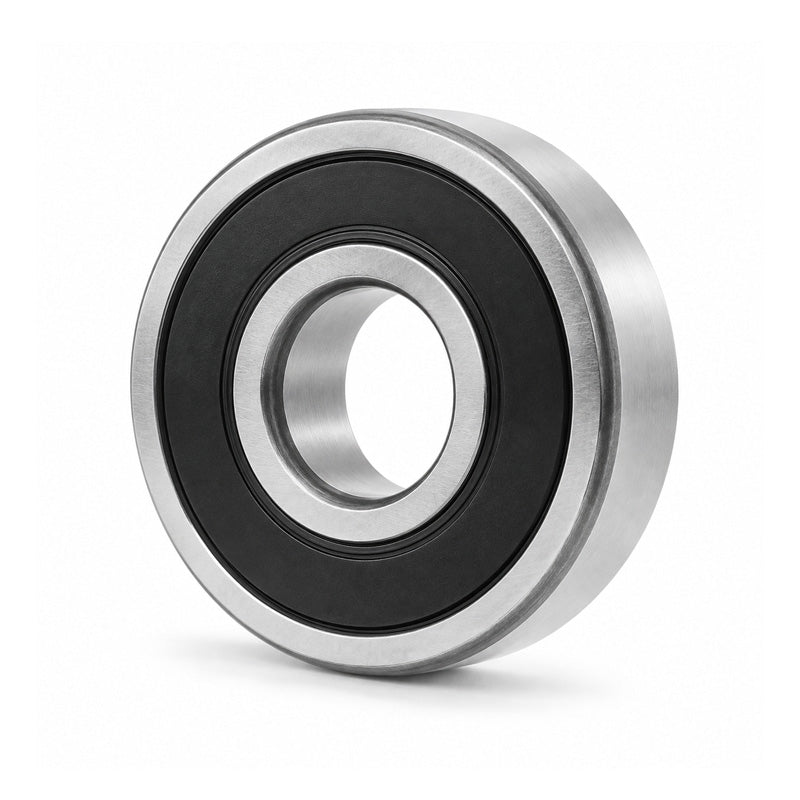

NKE 63062RS2C3 Rubber Sealed Deep Groove Ball Bearing 30x72x19mm
Equivalent to: 6306NSEC3 6306DUC3 6306RSC3 6306RSHC3 6306PC3 6306RSRC3 6306LUC3 63062NSEC3 6306DDUC3 63062RSC3 63062RSHC3 6306PPC3 63062RSRC3 6306LLU
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- NKE - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 30mm |
|---|---|
| D | 72mm |
| B | 19mm |
| Dynamic load C | 32.5 kN |
| Static load Co | 17.3 kN |
| Fatigue load limit Pu | 0.74 kN |
| Reference speed | 22000 rpm |
| Limiting speed | 14000 rpm |
| Weight | 0.33 kg |
| d1 | 42.5mm |
| d2 | 59.7mm |
| r1r2 min | 1.1mm |
| da min | 37mm |
| da max | 65mm |
| Da max | 1mm |
| ra max | 0.03mm |
| Calculation factor kr | 0.3 |
| Calculation factor f0 | 13 |
