SKU: 6304-2RS2-C3-NKE

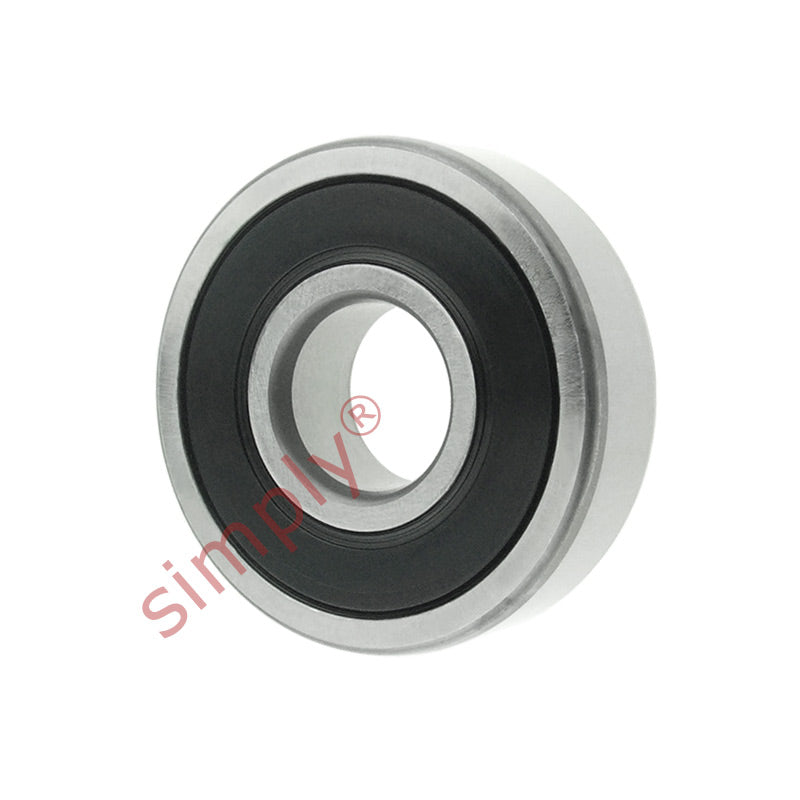

NKE 63042RS2C3 Rubber Sealed Deep Groove Ball Bearing 20x52x15mm
Equivalent to: 6304NSEC3 6304DUC3 6304RSC3 6304RSHC3 6304PC3 6304RSRC3 6304LUC3 63042NSEC3 6304DDUC3 63042RSC3 63042RSHC3 6304PPC3 63042RSRC3 6304LLU
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- NKE - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 20mm |
|---|---|
| D | 52mm |
| B | 15mm |
| Dynamic load C | 16.8 kN |
| Static load Co | 7.8 kN |
| Fatigue load limit Pu | 0.335 kN |
| Reference speed | 30000 rpm |
| Limiting speed | 9500 rpm |
| Weight | 0.14 kg |
| d2 | 27.2mm |
| D2 | 44.8mm |
| r1r2 min | 1.1mm |
| da min | 27mm |
| da max | 27mm |
| Da max | 45mm |
| ra max | 1mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 12 |
