SKU: 63009-2RS1/C3-SKF

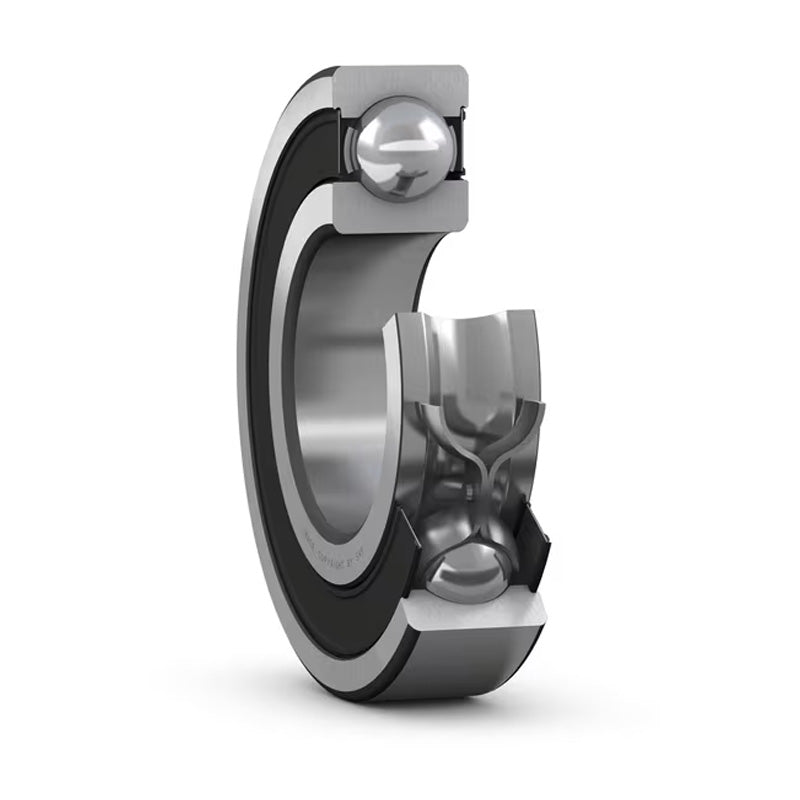

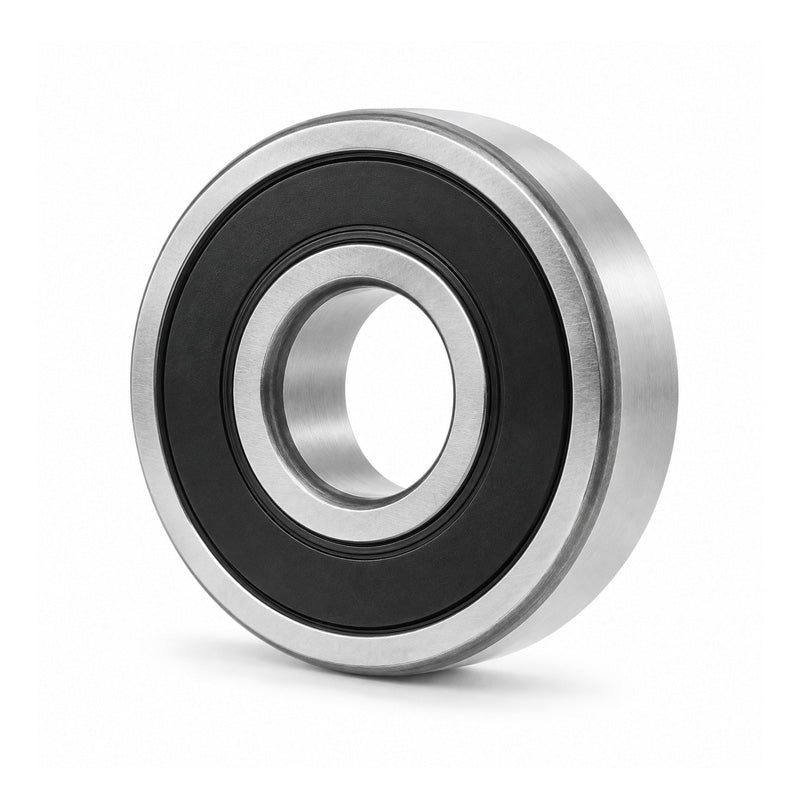

SKF 630092RS1C3 Rubber Sealed Deep Groove Ball Bearing 45x75x23mm
SKF 630092RS1C3 Rubber Sealed Deep Groove Ball Bearing 45x75x23mm
Equivalent to: 63009NSEC3 63009DUC3 63009RSC3 63009RSHC3 63009PC3 63009RSRC3 63009LUC3 630092NSEC3 63009DDUC3 630092RSC3 630092RSHC3 63009PPC3 630092RSRC3 63009LLU
Out of stock
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 75mm
- Width:
- 23mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 45mm |
|---|---|
| D | 75mm |
| B | 23mm |
| Dynamic load C | 20.8 kN |
| Static load Co | 14.6 kN |
| Fatigue load limit Pu | 0.64 kN |
| Reference speed | 20000 rpm |
| Limiting speed | 5600 rpm |
| Weight | 0.34 kg |
| d1 | 54.8mm |
| D2 | 67.8mm |
| r1r2 min | 1mm |
| da min | 50.8mm |
| Da max | 69.2mm |
| ra max | 1mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 15 |
