SKU: 625-NKE

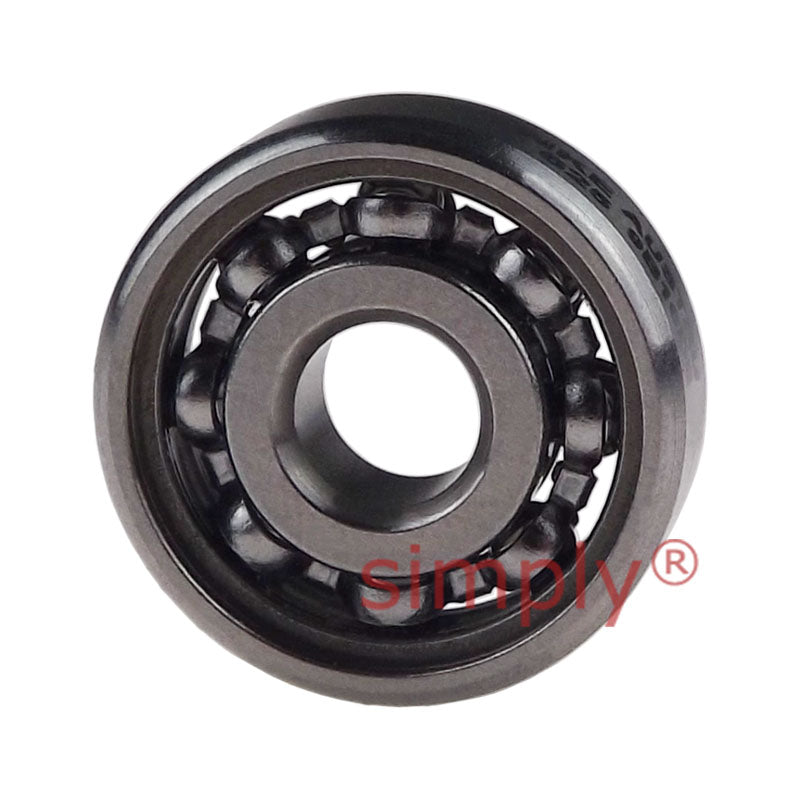

NKE 625 Open Deep Groove Ball Bearing 5x16x5mm
NKE 625 Open Deep Groove Ball Bearing 5x16x5mm
Regular price
€5,95
ex VAT
Regular price
Sale price
€5,95
ex VAT
In stock
Price Break
4+
€3,92
10+
€3,70
20+
€3,66
30+
€3,62
50+
€3,57
75+
€3,53
100+
€3,31
200+
€3,26
250+
€3,22
500+
€3,18
1000+
€3,09
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- NKE - High Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 16mm
- Width:
- 5mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 5mm |
|---|---|
| D | 16mm |
| B | 5mm |
| Dynamic load | 1.14 kN |
| Static load | 0.38 kN |
| Fatigue load limit Pu | 0.016 kN |
| Reference speed | 95000 rpm |
| Limiting speed | 60000 rpm |
| Weight | 0.005 kg |
| d1 | 8.4mm |
| D1 | 12mm |
| D2 | 13.3mm |
| r1r2 min | 0.3mm |
| da min | 7.4mm |
| Da max | 13.6mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.025 |
| Calculation factor Cor | 8.4 |
