SKU: 624-NKE

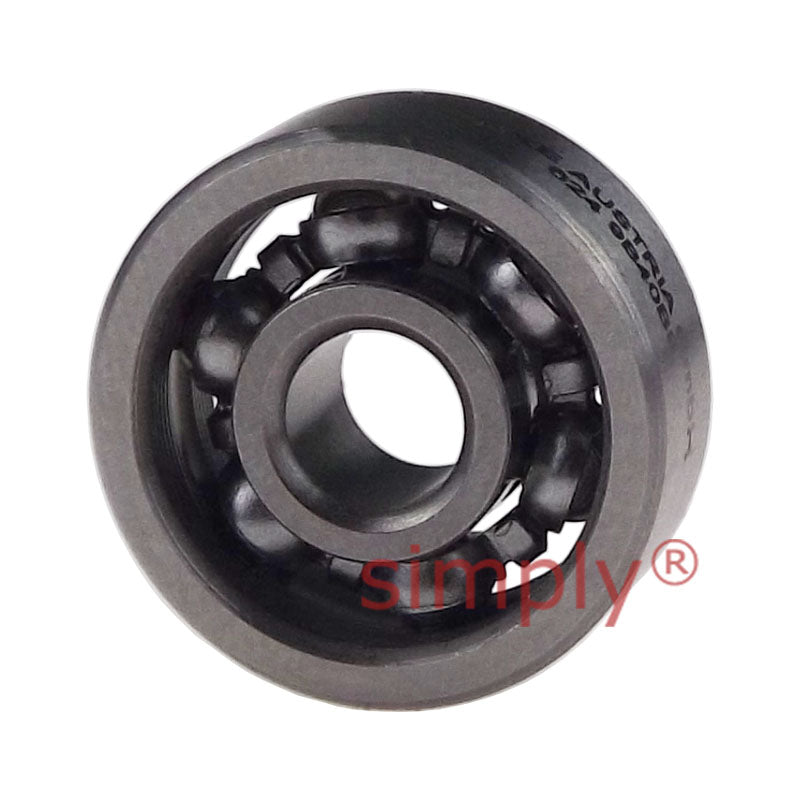

NKE 624 Open Deep Groove Ball Bearing 4x13x5mm
NKE 624 Open Deep Groove Ball Bearing 4x13x5mm
Regular price
€4,95
ex VAT
Regular price
Sale price
€4,95
ex VAT
In stock
Price Break
4+
€3,08
10+
€2,91
20+
€2,88
30+
€2,84
50+
€2,81
75+
€2,77
100+
€2,60
200+
€2,56
250+
€2,53
500+
€2,49
1000+
€2,42
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- NKE - High Quality
- Inside Diameter:
- 4mm
- Outside Diameter:
- 13mm
- Width:
- 5mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 4mm |
|---|---|
| D | 13mm |
| B | 5mm |
| Dynamic load | 0.936 kN |
| Static load | 0.29 kN |
| Fatigue load limit Pu | 0.012 kN |
| Reference speed | 110000 rpm |
| Limiting speed | 67000 rpm |
| Weight | 0.0031 kg |
| d1 | 6.7mm |
| D1 | 10.3mm |
| D2 | 11.2mm |
| r1r2 min | 0.2mm |
| da min | 5.8mm |
| Da max | 11.2mm |
| ra max | 0.2mm |
| Calculation factor kr | 0.025 |
| Calculation factor Cor | 10 |
