SKU: 6234C3-NTN

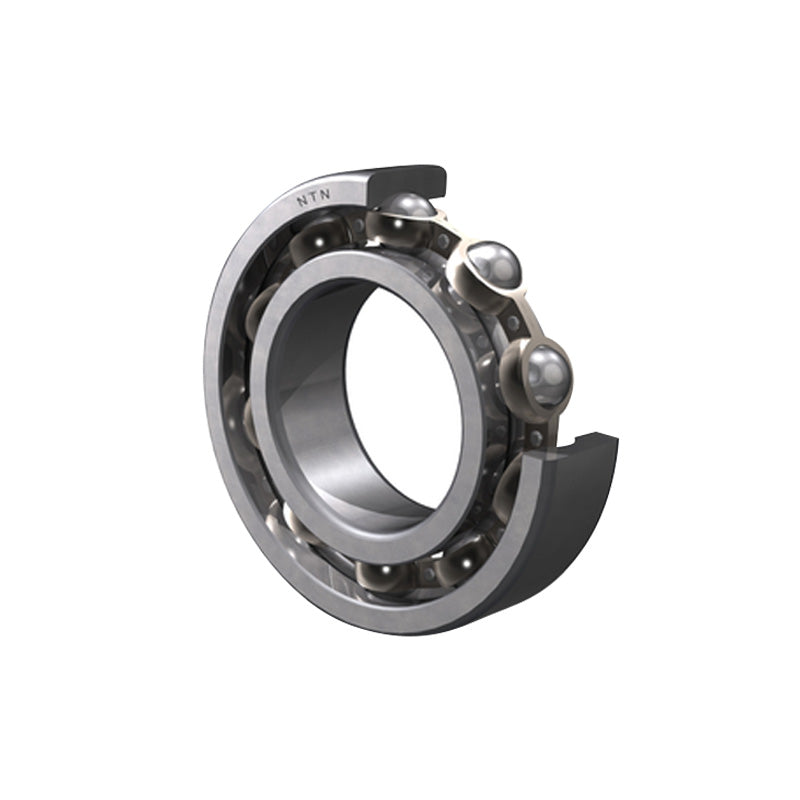

NTN 6234C3 Open Type Deep Groove Ball Bearing 170x310x52mm
NTN 6234C3 Open Type Deep Groove Ball Bearing 170x310x52mm
Regular price
€1.684,95
ex VAT
Regular price
Sale price
€1.684,95
ex VAT
Equivalent to: 234KC3 1234C3 234SC3 6234C3 3234C3
In stock
Price Break
3+
€1.280,28
5+
€1.208,36
10+
€1.193,97
25+
€1.179,59
49+
€1.165,20
74+
€1.150,82
99+
€1.078,89
199+
€1.064,50
249+
€1.050,12
499+
€1.035,73
999+
€1.006,96
Quantity
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 170mm
- Outside Diameter:
- 310mm
- Width:
- 52mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 170mm |
| D | 310mm |
| B | 52mm |
| r<sub>s</sub> min | 4mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 235 kN |
| C<sub>or</sub> | 223 kN |
| C<sub>u</sub> | 11.1 kN |
| f<sub>0</sub> | 15.3 kN |
| Grease | 2000 rpm |
| Oil | 2400 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 186mm |
| D<sub>a</sub> Max. | 294mm |
| r<sub>as</sub> Max. | 3mm |
| Weight | 14.5 kg |
