SKU: 623-MB

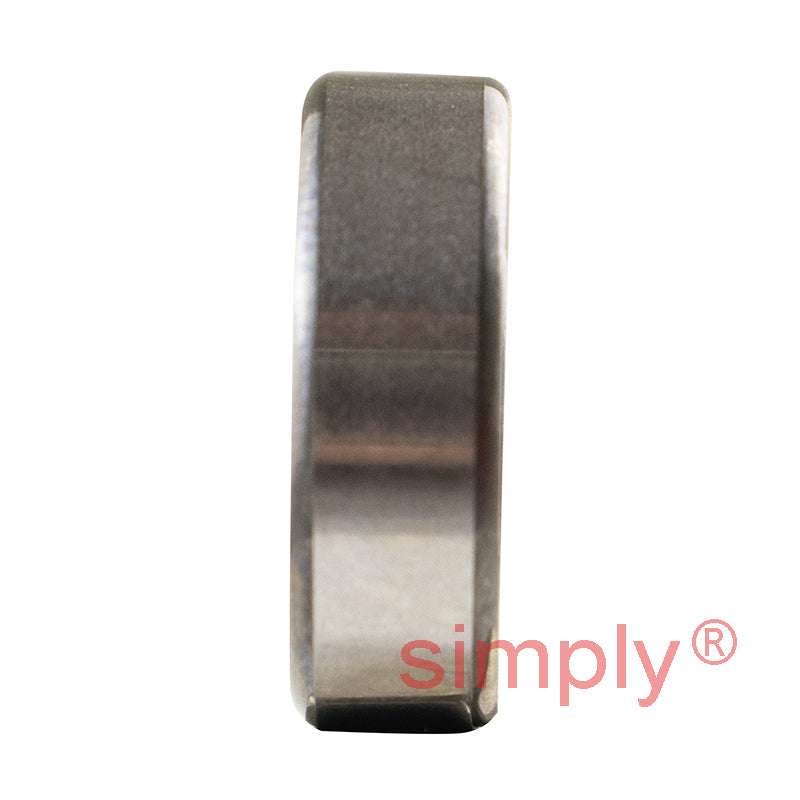

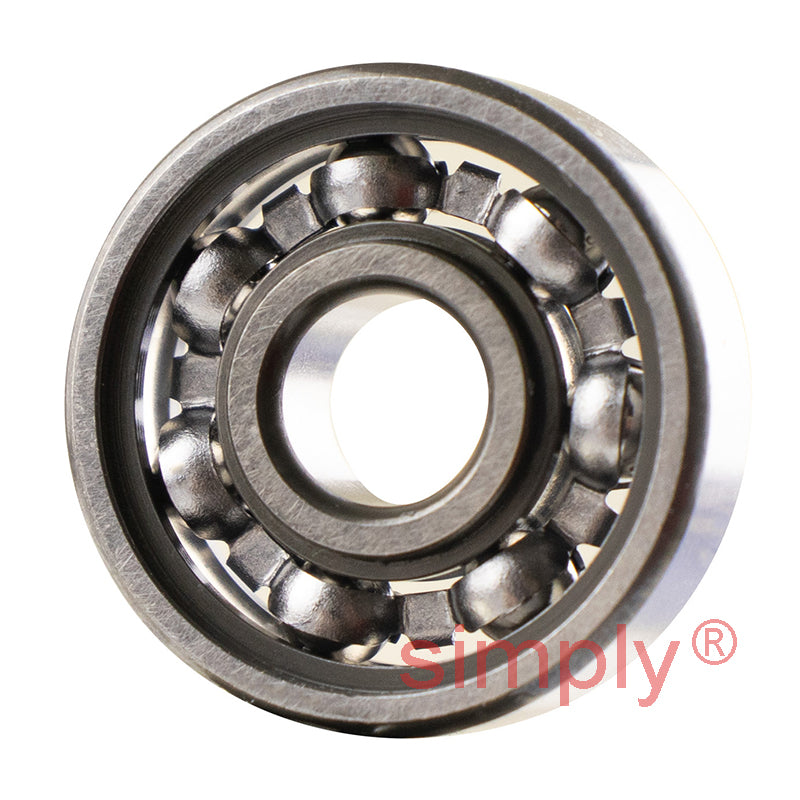

Major Branded 623 Open Deep Groove Ball Bearing 3x10x4mm
Major Branded 623 Open Deep Groove Ball Bearing 3x10x4mm
Regular price
€5,95
ex VAT
Regular price
Sale price
€5,95
ex VAT
In stock
Price Break
10+
€3,98
19+
€3,76
29+
€3,71
39+
€3,67
49+
€3,62
74+
€3,58
99+
€3,36
199+
€3,31
249+
€3,27
499+
€3,22
999+
€3,13
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 3mm
- Outside Diameter:
- 10mm
- Width:
- 4mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 3mm |
|---|---|
| D | 10mm |
| B | 4mm |
| Dynamic load C | 0.54 kN |
| Static load Co | 0.18 kN |
| Fatigue load limit Pu | 0.007 kN |
| Reference speed | 130000 rpm |
| Limiting speed | 80000 rpm |
| Mass | 0.0015 kg |
| d1 | 5.2mm |
| D1 | 7.5mm |
| D2 | 8.2mm |
| r1r2 min | 0.15mm |
| da min | 4.2mm |
| Da max | 8.8mm |
| ra max | 0.1mm |
| Calc factor Kr | 0.025 |
| Calc factor | 7.5 |
