SKU: 6224/C3VL0241-SKF

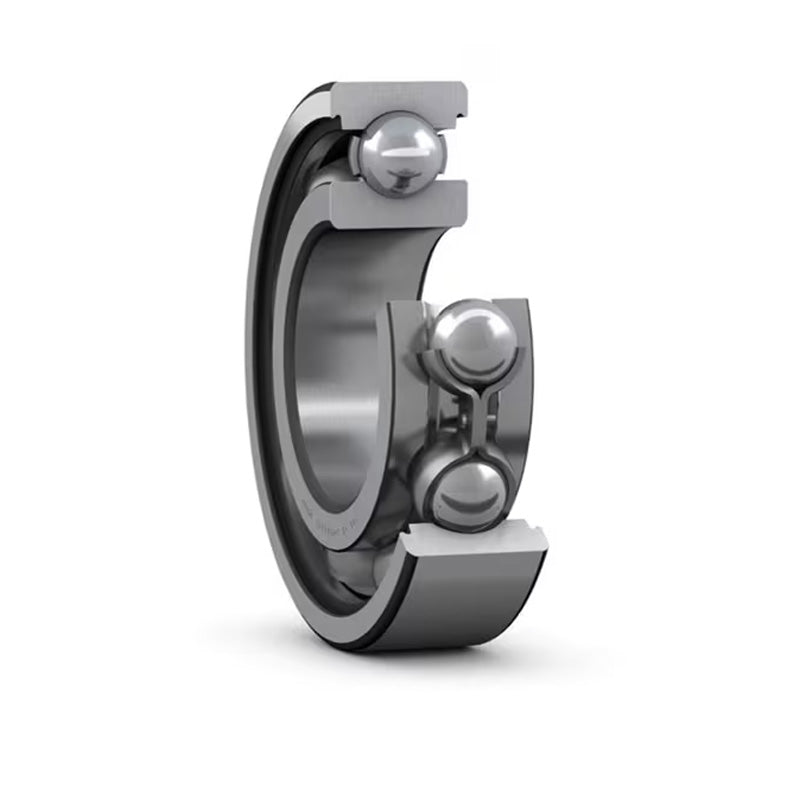

SKF 6224C3VL0241 Open Deep Groove Ball Bearing 120x215x40mm

Name: SKF 6224C3VL0241 Open Deep Groove Ball Bearing 120x215x40mm
Brand: SKF
SKU: 6224/C3VL0241-SKF
Price: 2228.95 EUR
Availability: InStock

€2.228,95 ex VAT

Sale Sold out

In stock

Price Break

4+ €1.693,47

10+ €1.598,33

20+ €1.579,30

30+ €1.560,27

50+ €1.541,25

75+ €1.522,22

100+ €1.427,08

200+ €1.408,05

250+ €1.389,02

500+ €1.370,00

1000+ €1.331,94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness) is applied to the bearing during manufacture to provide electrical insulation
Benefits: Electrically insulated

Brand / Quality:: SKF - High Quality
Inside Diameter:: 120mm
Outside Diameter:: 215mm
Width:: 40mm
Seals / Shields:: None
Clearance:: C3

Technical

d	120mm
D	215mm
B	40mm
Dynamic load	146 kN
Static load	118 kN
Fatigue load limit Pu	3.9 kN
Reference speed	6300 rpm
Limiting speed	4000 rpm
Weight	5.15 kg
d1	151mm
D1	184mm
D2	189mm
r1r2 min	2.1mm
da min	132mm
Da max	203mm
ra max	2mm
Calculation factor kr	0.025
Calculation factor Cor	14
