SKU: 6224-2Z-SKF

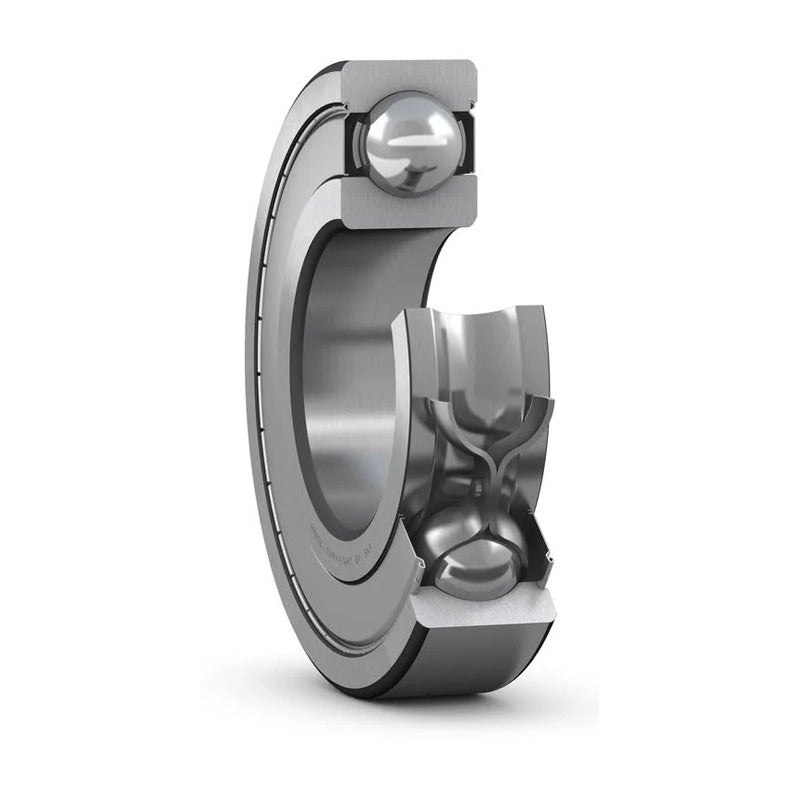

SKF 62242Z Metal Shielded Deep Groove Ball Bearing 120x215x40mm
SKF 62242Z Metal Shielded Deep Groove Ball Bearing 120x215x40mm
Equivalent to: 6224ZZE 6224ZZ 6224.2Z 6224KDD 6224DD 6224FF 62242ZR 6224ZZ 62242Z 6224ZZ
Out of stock
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 215mm
- Width:
- 40mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 120mm |
|---|---|
| D | 215mm |
| B | 40mm |
| Dynamic load C | 146 kN |
| Static load Co | 118 kN |
| Fatigue load limit Pu | 3.9 kN |
| Reference speed | 6300 rpm |
| Limiting speed | 3200 rpm |
| Weight | 5.15 kg |
| d1 | 151mm |
| d2 | 0mm |
| D2 | 189mm |
| r1r2 min | 2.1mm |
| da min | 132mm |
| da max | 0mm |
| Da max | 203mm |
| ra max | 2mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 14 |
