SKU: 6222/C3VL0241-SKF

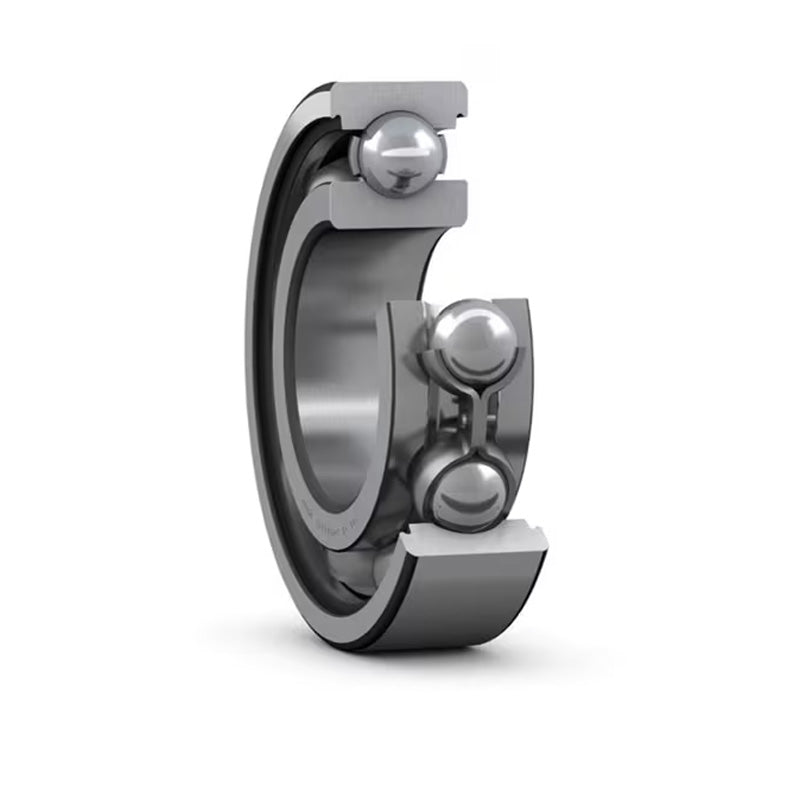

SKF 6222C3VL0241 Open Deep Groove Ball Bearing 110x200x38mm
SKF 6222C3VL0241 Open Deep Groove Ball Bearing 110x200x38mm
Regular price
€1.993,95
ex VAT
Regular price
Sale price
€1.993,95
ex VAT
In stock
Price Break
4+
€1.515,04
10+
€1.429,92
20+
€1.412,90
30+
€1.395,88
50+
€1.378,85
75+
€1.361,83
100+
€1.276,72
200+
€1.259,69
250+
€1.242,67
500+
€1.225,65
1000+
€1.191,60
Quantity
Couldn't load pickup availability
Description
Description
|
Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness) is applied to the bearing during manufacture to provide electrical insulation |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 200mm
- Width:
- 38mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 110mm |
|---|---|
| D | 200mm |
| B | 38mm |
| Dynamic load | 151 kN |
| Static load | 118 kN |
| Fatigue load limit Pu | 4 kN |
| Reference speed | 6700 rpm |
| Limiting speed | 4300 rpm |
| Weight | 4.35 kg |
| d1 | 138mm |
| D1 | 172mm |
| D2 | 177mm |
| r1r2 min | 2.1mm |
| da min | 122mm |
| Da max | 188mm |
| ra max | 2mm |
| Calculation factor kr | 0.025 |
| Calculation factor Cor | 14 |
