SKU: 6216ZZC3/5K-NTN

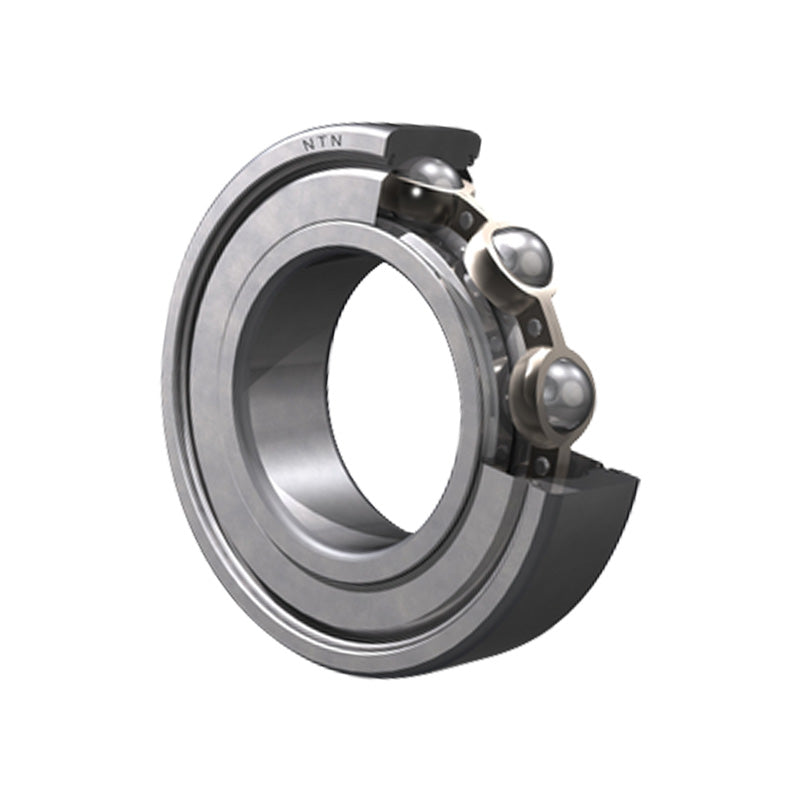

NTN 6216ZZC3/5K Metal Shielded Type Deep Groove Ball Bearing 80x140x26mm
Equivalent to: 6216ZZC3 62162ZC3 6216ZZC3 62162ZRC3 6216ZZEC3 6216FFC3 6216DDC3 6216DDCC3 6216KDDCC3 EL802ZC3 EL80ZZC3 9116KDDC3 9116FFC3 116KSFFC3 773L16C3 6116PPC3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 140mm
- Width:
- 26mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| --- | Bearing dimensions |
|---|---|
| d | 80mm |
| D | 140mm |
| B | 26mm |
| r<sub>s</sub> min | 2mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 80.5 kN |
| C<sub>or</sub> | 53 kN |
| C<sub>u</sub> | 3.95 kN |
| f<sub>0</sub> | 14.6 kN |
| Grease | 4500 rpm |
| Oil | 5300 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 89mm |
| d<sub>a</sub> Max. | 95.5mm |
| D<sub>a</sub> Max. | 131mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 1.4 kg |
