SKU: 6216-NTN

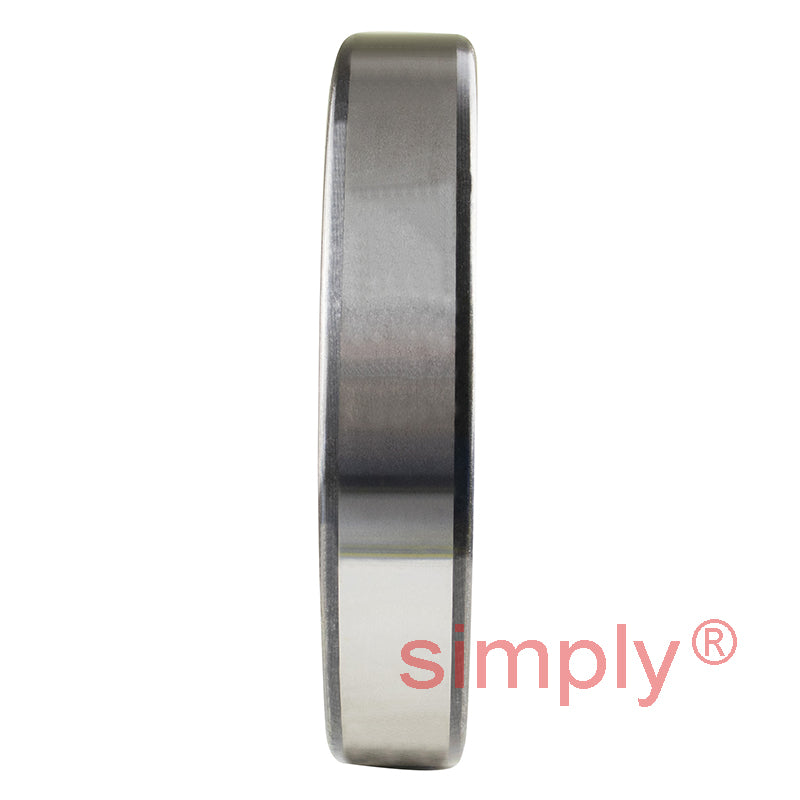

NTN 6216 Open Type Deep Groove Ball Bearing 80x140x26mm
NTN 6216 Open Type Deep Groove Ball Bearing 80x140x26mm
Regular price
€94,95
ex VAT
Regular price
Sale price
€94,95
ex VAT
Equivalent to: 6216CM 216K 1216 216S 6216 3216 13A
In stock
Price Break
3+
€72,04
5+
€67,99
10+
€67,18
25+
€66,37
49+
€65,56
74+
€64,75
99+
€60,71
199+
€59,90
249+
€59,09
499+
€58,28
999+
€56,66
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 140mm
- Width:
- 26mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 80mm |
| D | 140mm |
| B | 26mm |
| r<sub>s</sub> min | 2mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 80.5 kN |
| C<sub>or</sub> | 53 kN |
| C<sub>u</sub> | 3.95 kN |
| f<sub>0</sub> | 14.6 kN |
| Grease | 4500 rpm |
| Oil | 5300 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 89mm |
| D<sub>a</sub> Max. | 131mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 1.4 kg |
