SKU: 6213ZNR-NTN

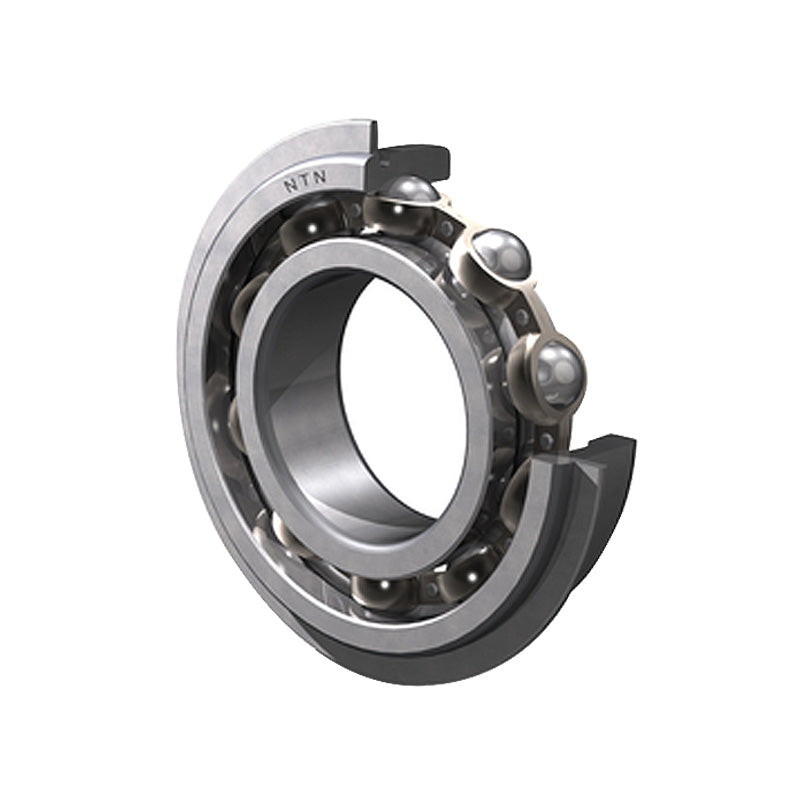

NTN 6213ZNR One Metal Shield Type Deep Groove Ball Bearing with Snap Ring 65x120x23mm

NTN 6213ZNR One Metal Shield Type Deep Groove Ball Bearing with Snap Ring 65x120x23mm
Regular price €156,95 ex VAT
Regular price Sale price €156,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €118,77
5+ €112,10
10+ €110,76
25+ €109,43
49+ €108,09
74+ €106,76
99+ €100,09
199+ €98,75
249+ €97,42
499+ €96,08
999+ €93,42
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 65mm
D 120mm
B 23mm
r<sub>s</sub> min 1.5mm
rNS Min. 0.5
--- Loads angles and speeds
C<sub>r</sub> 63.5 Kn
C<sub>or</sub> 40 kN
C<sub>u</sub> 3.15 kN
f<sub>0</sub> 14.4 kN
Grease 5500 rpm
Oil 6500 rpm
--- Snap Ring Dimensions
D<sub>1</sub> Max. 115.21
a Max. 4.06
b Min. 3.1
r<sub>o</sub> Max. 0.6
D<sub>2</sub> Max. 129.7
f Max. 2.82
--- Fitting Dimensions
d<sub>a</sub> Min. 73mm
d<sub>a</sub> Max. 80.5mm
D<sub>a</sub> Max. 112mm
D<sub>X</sub> (approx) 131.5
C<sub>Y</sub> Max. 6.5
C<sub>Z</sub> Min. 2.9
r<sub>as</sub> Max. 1.5mm
r<sub>Nas</sub> Max. 0.5
Weight 0.99 kg
