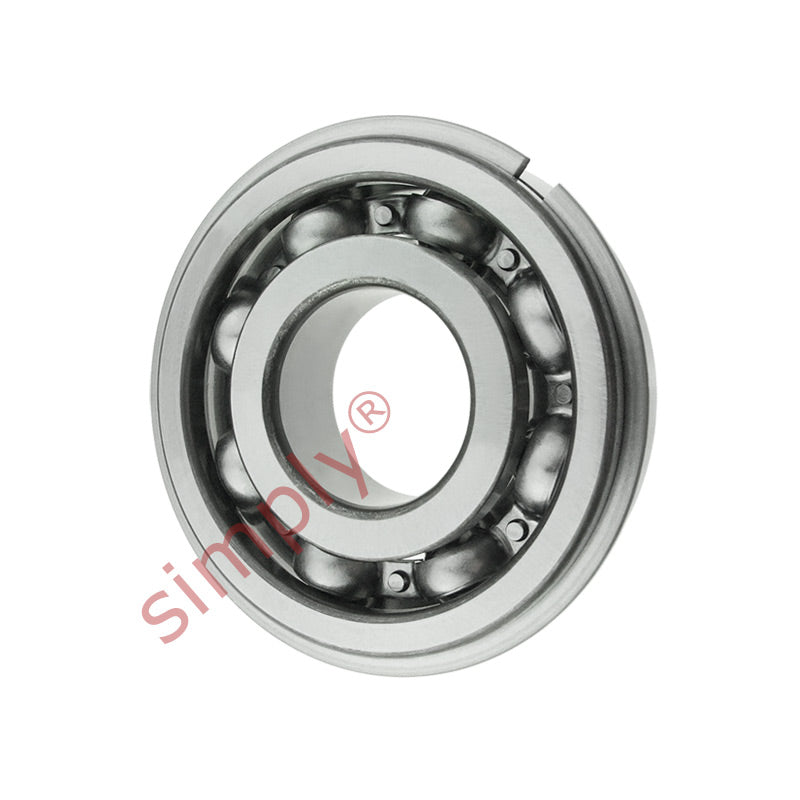

FAG 6213NR Deep Groove Ball Bearing with Snap Ring 65x120x23mm
FAG 6213NR Deep Groove Ball Bearing with Snap Ring 65x120x23mm
Out of stock
Share this product
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 120mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 120mm |
| B | 23mm |
| Dyamic load C | 58.5 kN |
| Static load Co | 40.5 kN |
| Fatigue load limit Pu | 1.73 kN |
| Reference speed | 12000 rpm |
| Limiting speed | 7500 rpm |
| Mass | 0.99 kg |
| d1 | 83.3mm |
| d2 | 102mm |
| D2 | 106mm |
| r1r2 min | 1.5mm |
| da min | 74 |
