SKU: 6212ZNR-NTN

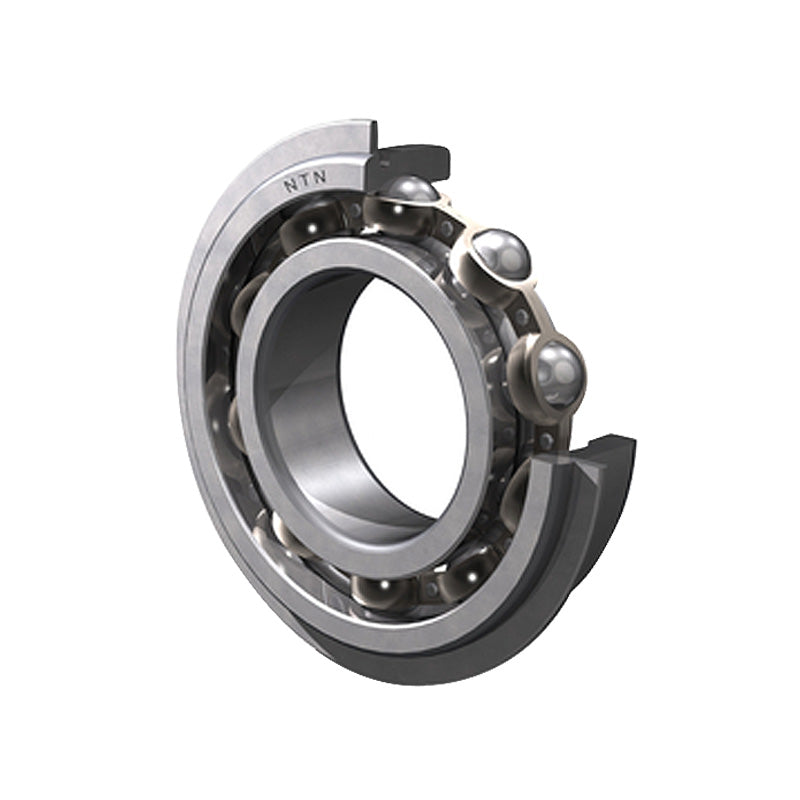

NTN 6212ZNR One Metal Shield Type Deep Groove Ball Bearing with Snap Ring 60x110x22mm

NTN 6212ZNR One Metal Shield Type Deep Groove Ball Bearing with Snap Ring 60x110x22mm
Regular price €106,95 ex VAT
Regular price Sale price €106,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €80,99
5+ €76,44
10+ €75,53
25+ €74,62
49+ €73,71
74+ €72,80
99+ €68,25
199+ €67,34
249+ €66,43
499+ €65,52
999+ €63,70
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 60mm
D 110mm
B 22mm
r<sub>s</sub> min 1.5mm
rNS Min. 0.5
--- Loads angles and speeds
C<sub>r</sub> 58 Kn
C<sub>or</sub> 36 kN
C<sub>u</sub> 2.83 kN
f<sub>0</sub> 14.3 kN
Grease 6000 rpm
Oil 7000 rpm
--- Snap Ring Dimensions
D<sub>1</sub> Max. 106.81
a Max. 3.28
b Min. 2.7
r<sub>o</sub> Max. 0.6
D<sub>2</sub> Max. 116.6
f Max. 2.46
--- Fitting Dimensions
d<sub>a</sub> Min. 68mm
d<sub>a</sub> Max. 75mm
D<sub>a</sub> Max. 102mm
D<sub>X</sub> (approx) 118
C<sub>Y</sub> Max. 5.4
C<sub>Z</sub> Min. 2.5
r<sub>as</sub> Max. 1.5mm
r<sub>Nas</sub> Max. 0.5
Weight 0.783 kg
