SKU: 6212-2Z-C3-FAG

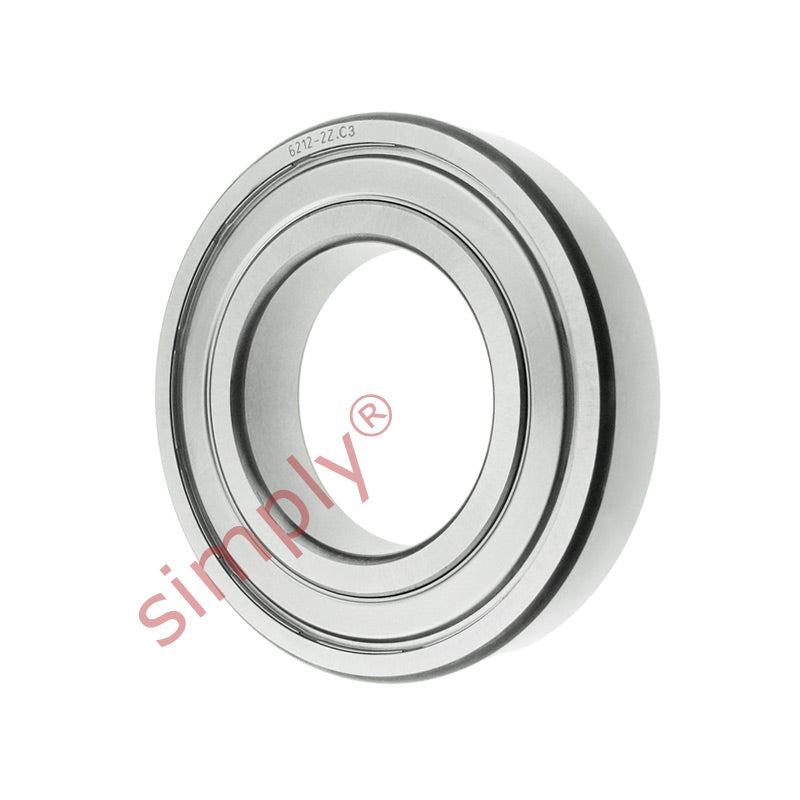

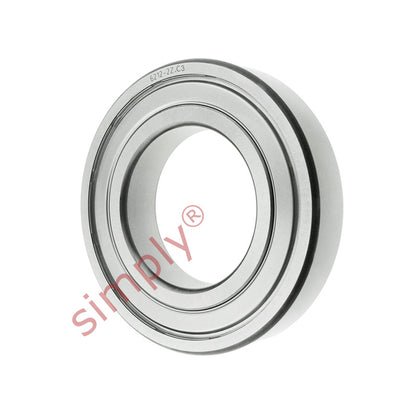

FAG 62122ZC3 Metal Shielded Deep Groove Ball Bearing 60x110x22mm
Equivalent to: 6212ZZEC3 6212ZZC3 6212.2ZC3 6212KDDC3 6212DDC3 62122ZRC3 6212FFC3
In stock
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 22mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B | 22mm |
| Dynamic load C | 55.3 kN |
| Static load Co | 36 kN |
| Fatigue load limit Pu | 1.53 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 6300 rpm |
| Mass | 0.78 kg |
| d1 | 75.5mm |
| D2 | 98mm |
| r1r2 min | 1.5mm |
| da min | 69 |
