SKU: 6207ZZNR/5K-NTN

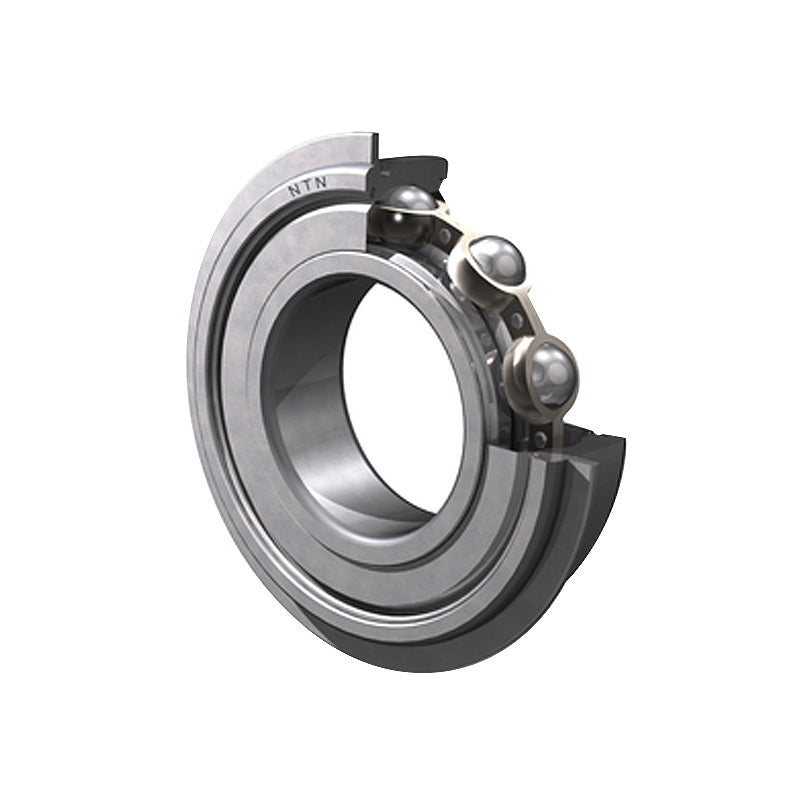

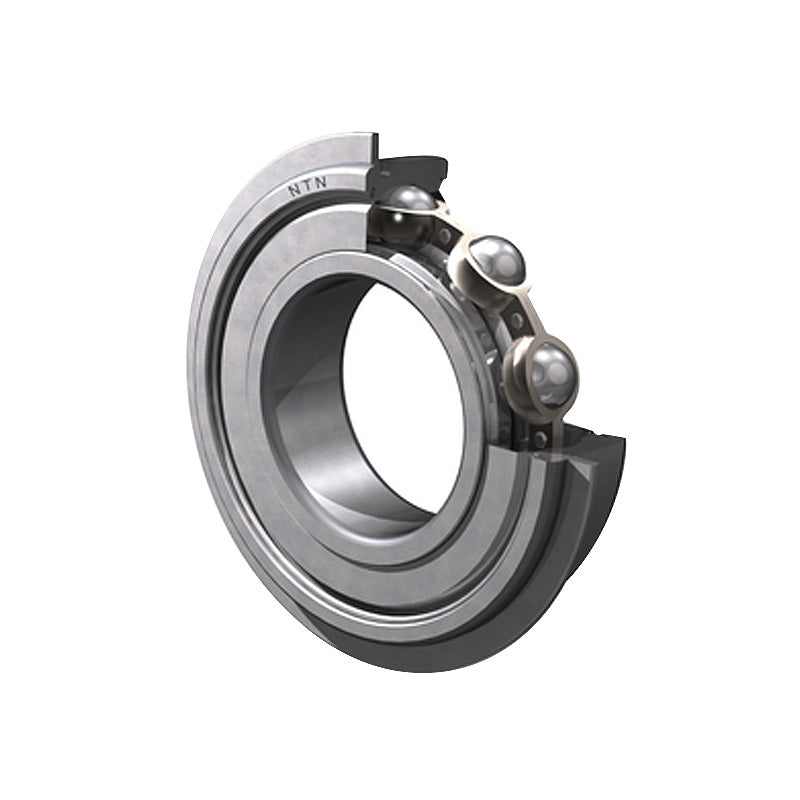

NTN 6207ZZNR/5K Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 35x72x17mm
Equivalent to: 6207ZZNRCM 6207ZZNR 6207ZZNR 62072ZNR 6207ZZNR 62072ZRNR 6207ZZENR 6207FFNR 6207DDNR 6207DDCNR 6207KDDCNR EL352ZNR EL35ZZNR 9107KDDG 4773L07 107KSFFG
In stock
Price Break
Couldn't load pickup availability
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 35mm |
| D | 72mm |
| B | 17mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 28.4 kN |
| C<sub>or</sub> | 15.3 kN |
| C<sub>u</sub> | 1.09 kN |
| f<sub>0</sub> | 13.8 rpm |
| Grease | 9800 rpm |
| --- | Fitting Dimensions |
| Oil | 11000 rpm |
| D<sub>1</sub> Max. | 68.81mm |
| a Max. | 3.28mm |
| b Min. | 1.9mm |
| r<sub>o</sub> Max. | 0.6mm |
