SKU: 6207-NR-FAG

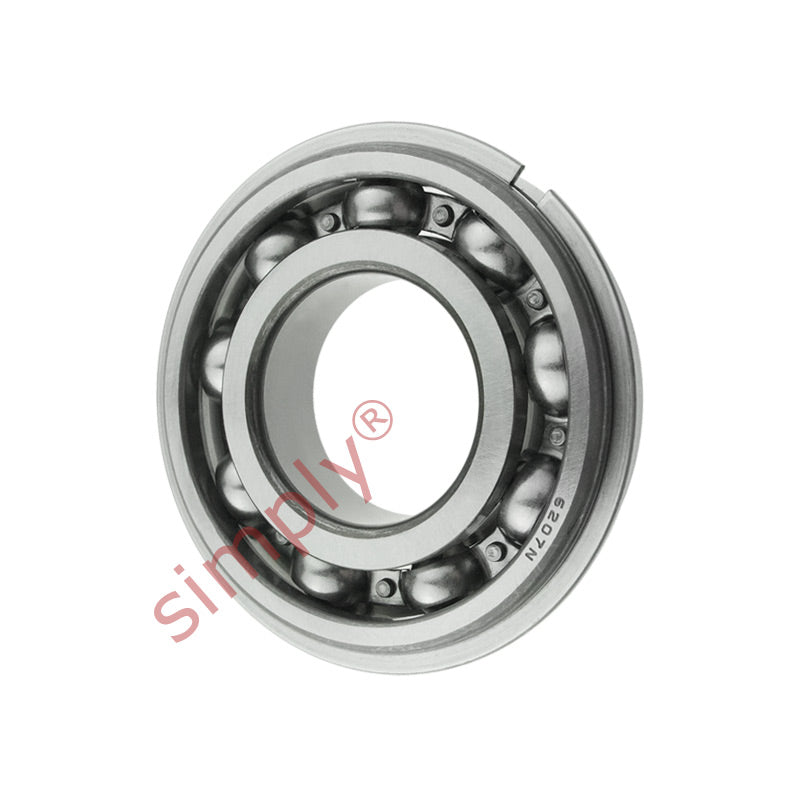

FAG 6207NR Deep Groove Ball Bearing with Snap Ring 35x72x17mm
FAG 6207NR Deep Groove Ball Bearing with Snap Ring 35x72x17mm
Regular price
€46,95
ex VAT
Regular price
Sale price
€46,95
ex VAT
In stock
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B | 17mm |
| Dyamic load C | 27 kN |
| Static load Co | 15.3 kN |
| Fatigue load limit Pu | 0.66 kN |
| Reference speed | 20000 rpm |
| Limiting speed | 13000 rpm |
| Mass | 0.29 kg |
| d1 | 46.9mm |
| d2 | 60mm |
| D2 | 62.7mm |
| r1r2 min | 1.1mm |
| da min | 42 |
