SKU: 6204-NTN

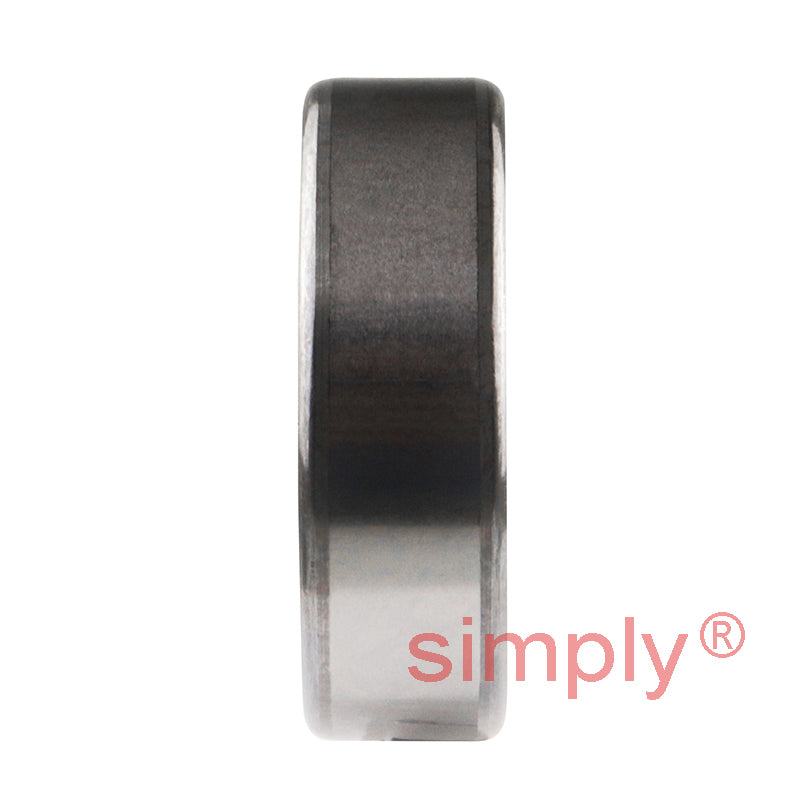

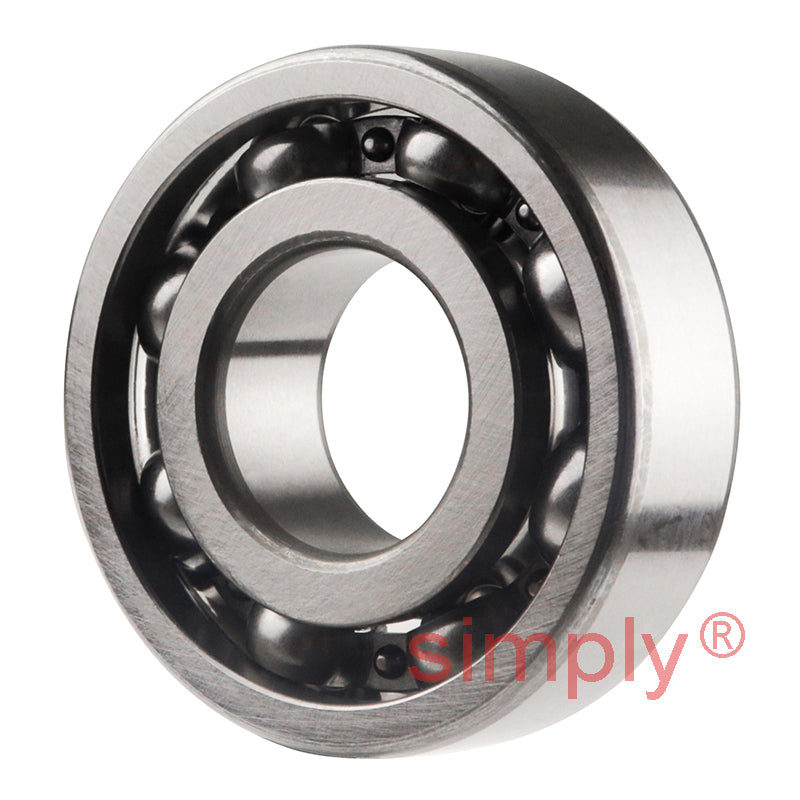

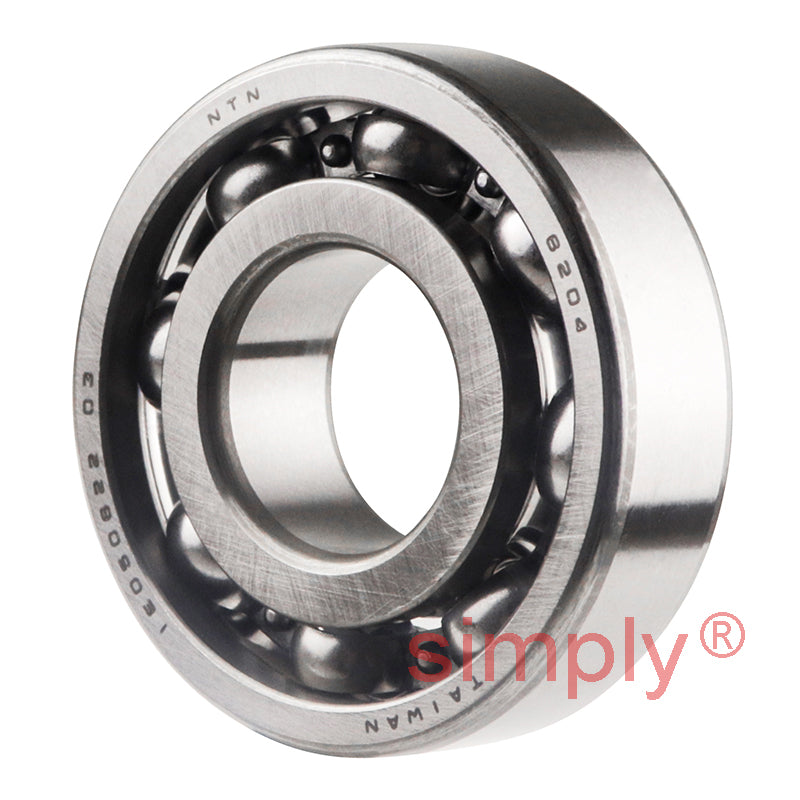

NTN 6204 Open Type Deep Groove Ball Bearing 20x47x14mm
NTN 6204 Open Type Deep Groove Ball Bearing 20x47x14mm
Regular price
€7,95
ex VAT
Regular price
Sale price
€7,95
ex VAT
Equivalent to: 6204CM 204K 1204 204S 6204 3204 1A20
In stock
Price Break
3+
€5,46
5+
€5,15
10+
€5,09
25+
€5,03
49+
€4,97
74+
€4,90
99+
€4,60
199+
€4,54
249+
€4,47
499+
€4,41
999+
€4,29
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 20mm |
| D | 47mm |
| B | 14mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 14.2 kN |
| C<sub>or</sub> | 6.65 kN |
| C<sub>u</sub> | 0.505 kN |
| f<sub>0</sub> | 13.2 kN |
| Grease | 16000 rpm |
| Oil | 18000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 25mm |
| D<sub>a</sub> Max. | 42mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.106 kg |
