SKU: 6203LLB/5K-NTN

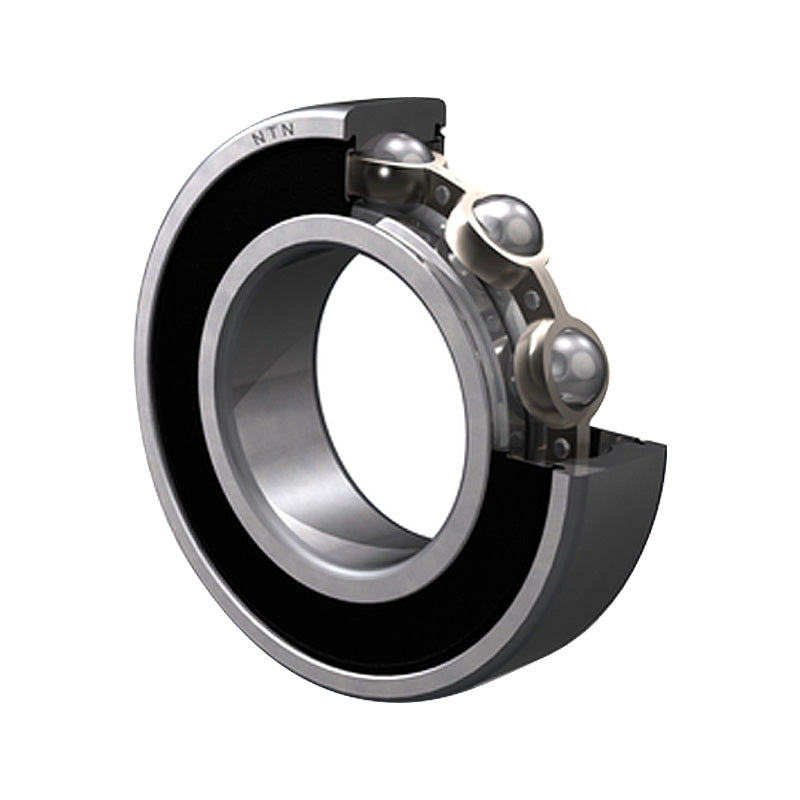

NTN 6203LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 17x40x12mm
NTN 6203LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 17x40x12mm
Regular price
€10,95
ex VAT
Regular price
Sale price
€10,95
ex VAT
Equivalent to: 6203LLBCM 62032NKE 6203VV 62032RSL 62032RZ
In stock
Price Break
3+
€7,77
5+
€7,33
10+
€7,25
25+
€7,16
49+
€7,07
74+
€6,98
99+
€6,55
199+
€6,46
249+
€6,37
499+
€6,29
999+
€6,11
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 17mm |
| D | 40mm |
| B | 12mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 10.6 kN |
| C<sub>or</sub> | 4.6 kN |
| C<sub>u</sub> | 0.355 kN |
| f<sub>0</sub> | 12.8 kN |
| Grease | 18000 rpm |
| Oil | 21000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 21mm |
| d<sub>a</sub> Max. | 23mm |
| D<sub>a</sub> Max. | 36mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight | 0.066 kg |
